20 × 10 ft Portable Office Cabin

Name: 20 × 10 ft Portable Office Cabin
Brand: Porta Cabin Systems
Price: 260000 INR
Availability: BackOrder

Popular mid-size office cabin with flexible internal layout.

₹2,60,000 per unit

excl. GST

Base price (excl. GST): ₹2,60,000
GST @ 18%: ₹46,800
Total incl. GST: ₹3,06,800

Size: 20 × 10 × 8.5 ft
Availability: Made to order
Lead time: Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
Warranty: 5-year structural, subject to customer maintenance against rust and paint deterioration · 1-year on supplied electrical and hardware items

Buy Now takes you to secure online payment with this quantity. Add to Cart keeps this cabin in your cart.

Online payment covers the product price, GST and a delivery charge confirmed from your delivery address at checkout. Unloading, installation and site charges are optional and quoted separately.

Secure payments powered by Razorpay

Safe & Secure Payments

Available payment methods are shown securely by Razorpay at checkout and may depend on the order value.

Secured by

Payment details are entered only in Razorpay’s own secure payment window. This website never sees or stores them.

Overview

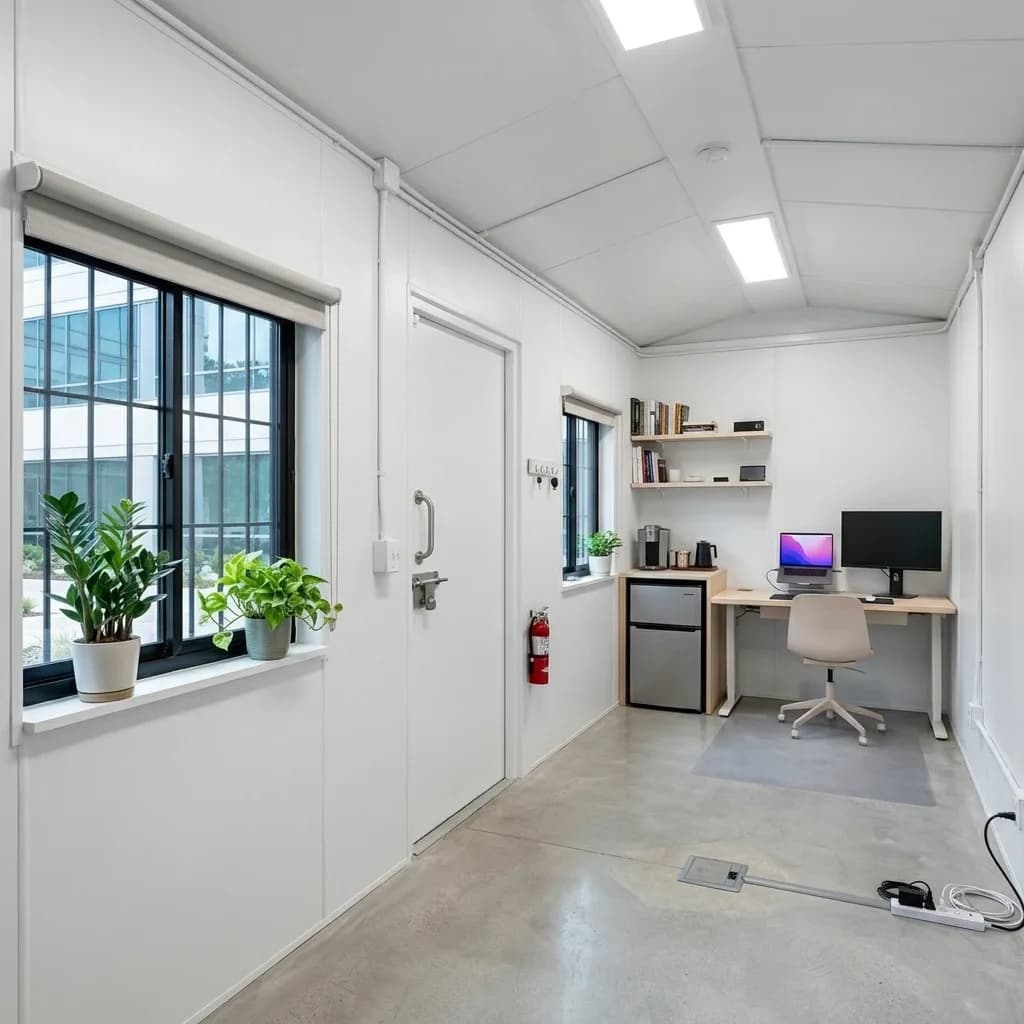

Our most popular office size, the 20 × 10 ft cabin provides comfortable space for a small team with room for partitions, storage and a pantry. Finished to your specification with insulated walls, a durable floor and complete electrical fittings.

Applications

Team office
Site office
Sales office
Consultation room

Standard specification included in this price

1 door
3 aluminium sliding windows with grills
3 LED tube lights
2 cabin fans
1 AC provision
5 plug points
1 exterior bulkhead light

Specifications & materials

Final materials always match your approved quotation, drawing and purchase order.

Structure

Bottom frame: Heavy-duty MS rectangular / structural section as approved
Main frame: Welded MS framework
Surface protection: Anti-corrosion primer and approved exterior coating
Lifting arrangement: Suitable lifting hooks / points

Flooring

Support: Structural floor support
Base board: Cement-fibre board or approved equivalent
Finish: Commercial vinyl flooring or selected finish (anti-skid optional)

Walls

Wall system: Insulated wall system (PUF / EPS / rockwool as approved)
Finish: Interior and exterior finish selected by customer; joints sealed

Roof

Roof system: Insulated roof with waterproof joint treatment and drainage
Ceiling: Optional false ceiling

Door

Door: MS / flush / aluminium door with locking hardware and handle

Windows

Windows: Aluminium / UPVC sliding windows with safety grill and locking
Mesh: Optional mosquito mesh

Electrical

Wiring: Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Distribution: MCB distribution board with earthing point
Fittings: LED lights, cabin fans, plug points, AC provision, exterior bulkhead light

Technical Material Specifications

Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.

Bottom Frame: 100 × 50 mm formed MS C-channel, 5 mm thick
Bottom Stiffeners: 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
Top Frame: Frame made from 50 × 50 mm square pipe, 2 mm thick
Top Stiffeners: 50 × 25 × 1.4 mm square pipe
Side Posts: 50 × 50 × 1.6 mm square pipe
Side-Wall Stiffeners: 50 × 25 × 1.4 mm square pipe
External Wall Panelling: Specially corrugated Corten steel sheet, 1.2 mm thick
Internal Wall Panelling: 7.3 mm pre-laminated MDF board
External Roof: 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
Bottom Flooring: 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
MS Door: 25 × 25 mm MS frame with 1.2 mm corrugated sheet
Insulation: Roof: 50 mm glass wool; Walls: 12 mm Armaflex
Wiring: Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Electrical Fittings: 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
External Painting: Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
Lifting Hooks: Specially formed hooks for convenient lifting and shifting

Available sizes

Standard external size: 20 × 10 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.

Delivery, warranty & drawings

Manufacturing

Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)

Delivery

Delivery is charged at checkout from our approved schedule, and every figure includes GST: ₹1,000 to PIN codes local to our yard, ₹18,000 elsewhere in Karnataka and Tamil Nadu, ₹28,000 to Andhra Pradesh, Telangana, Kerala and Puducherry, ₹45,000 elsewhere in India that we serve. Unloading at your site, positioning and on-site installation are not included in the delivery charge. They are available as an optional service at ₹15,000 including GST, which you can add at checkout to pay for with your order or have arranged separately with our team afterwards, and which is never added unless you choose it.

Warranty

The cabin structure is covered by a 5-year structural warranty, subject to customer maintenance against rust and paint deterioration.

Electrical items and hardware items supplied with the cabin are covered by a 1-year warranty from the confirmed date of delivery.

Labour support: free for the first 2 years from delivery, chargeable for the following 3 years. This is labour support, not a product warranty.

No floor plan is on file for this model. Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
