10 × 10 ft Portable Office Cabin

Single-room office cabin for compact site and factory use.

From ₹1,45,000 per unit

Sample price — request a quote · excl. GST

Size: 10 × 10 × 8.5 ft
Availability: Made to order
Lead time: Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
Warranty: 5-year structural, subject to customer maintenance against rust and paint deterioration · 1-year on supplied electrical and hardware items

Online payment is not available for this cabin, so Buy Now opens checkout with this quantity to request a quotation; no payment is taken online. Add to Cart keeps this cabin in your cart, and a cart line does not reserve stock.

Overview

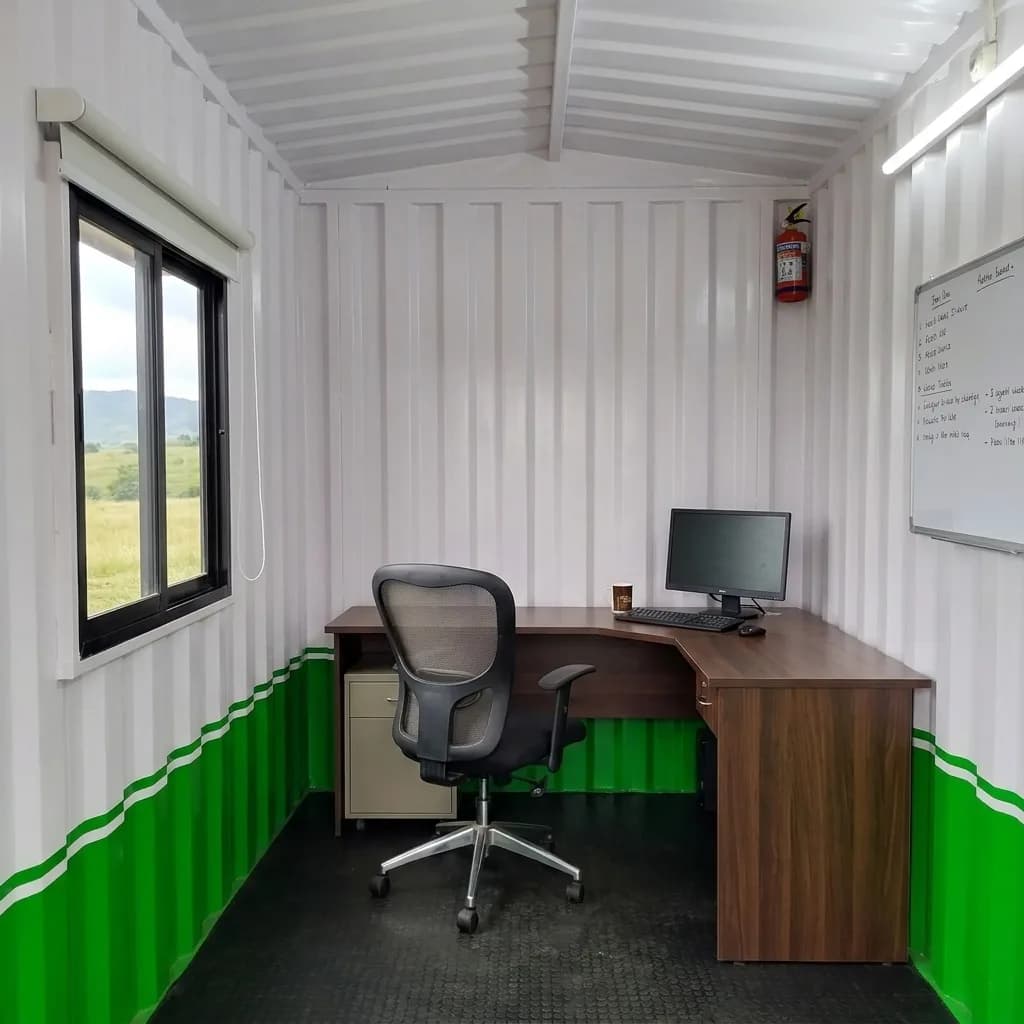

A single-room portable office cabin suited to small teams, supervisors and site engineers. The insulated construction keeps the interior comfortable, and the layout, electricals and finish can be tailored to your requirement.

Applications

Site office
Supervisor cabin
Reception
Small workspace

Standard inclusions

1 door
2 sliding windows
2 LED tube lights
1 fan
AC provision
4 plug points

Included in the standard build. The figure shown on this page is indicative; the price for this configuration is confirmed in your quotation.

Specifications & materials

Final materials always match your approved quotation, drawing and purchase order.

Structure

Bottom frame: Heavy-duty MS rectangular / structural section as approved
Main frame: Welded MS framework
Surface protection: Anti-corrosion primer and approved exterior coating
Lifting arrangement: Suitable lifting hooks / points

Flooring

Support: Structural floor support
Base board: Cement-fibre board or approved equivalent
Finish: Commercial vinyl flooring or selected finish (anti-skid optional)

Walls

Wall system: Insulated wall system (PUF / EPS / rockwool as approved)
Finish: Interior and exterior finish selected by customer; joints sealed

Roof

Roof system: Insulated roof with waterproof joint treatment and drainage
Ceiling: Optional false ceiling

Door

Door: MS / flush / aluminium door with locking hardware and handle

Windows

Windows: Aluminium / UPVC sliding windows with safety grill and locking
Mesh: Optional mosquito mesh

Electrical

Wiring: Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Distribution: MCB distribution board with earthing point
Fittings: LED lights, cabin fans, plug points, AC provision, exterior bulkhead light

Technical Material Specifications

Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.

Bottom Frame: 100 × 50 mm formed MS C-channel, 5 mm thick
Bottom Stiffeners: 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
Top Frame: Frame made from 50 × 50 mm square pipe, 2 mm thick
Top Stiffeners: 50 × 25 × 1.4 mm square pipe
Side Posts: 50 × 50 × 1.6 mm square pipe
Side-Wall Stiffeners: 50 × 25 × 1.4 mm square pipe
External Wall Panelling: Specially corrugated Corten steel sheet, 1.2 mm thick
Internal Wall Panelling: 7.3 mm pre-laminated MDF board
External Roof: 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
Bottom Flooring: 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
MS Door: 25 × 25 mm MS frame with 1.2 mm corrugated sheet
Insulation: Roof: 50 mm glass wool; Walls: 12 mm Armaflex
Wiring: Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Electrical Fittings: 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
External Painting: Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
Lifting Hooks: Specially formed hooks for convenient lifting and shifting

Available sizes

Standard external size: 10 × 10 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.

Delivery, warranty & drawings

Manufacturing

Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)

Delivery

Delivery across Karnataka and India; transportation quoted separately.

Warranty

The cabin structure is covered by a 5-year structural warranty, subject to customer maintenance against rust and paint deterioration.

Electrical items and hardware items supplied with the cabin are covered by a 1-year warranty from the confirmed date of delivery.

Labour support: free for the first 2 years from delivery, chargeable for the following 3 years. This is labour support, not a product warranty.

No floor plan is on file for this model. Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
