30 × 10 ft Portable Site Office in Bangalore
Larger site office for project teams and site management.
₹3,80,000 – ₹4,60,000 per unit
Sample price — request a quote · excl. GST
- SIZE
- 30 × 10 × 8.5 ft
- AVAILABILITY
- Made to order
- LEAD TIME
- Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
- WARRANTY
- 5-year structural, subject to customer maintenance against rust and paint deterioration · 1-year on supplied electrical and hardware items
Online payment is not available for this cabin, so Buy Now opens checkout with this quantity to request a quotation; no payment is taken online. Add to Cart keeps this cabin in your cart, and a cart line does not reserve stock.
Overview

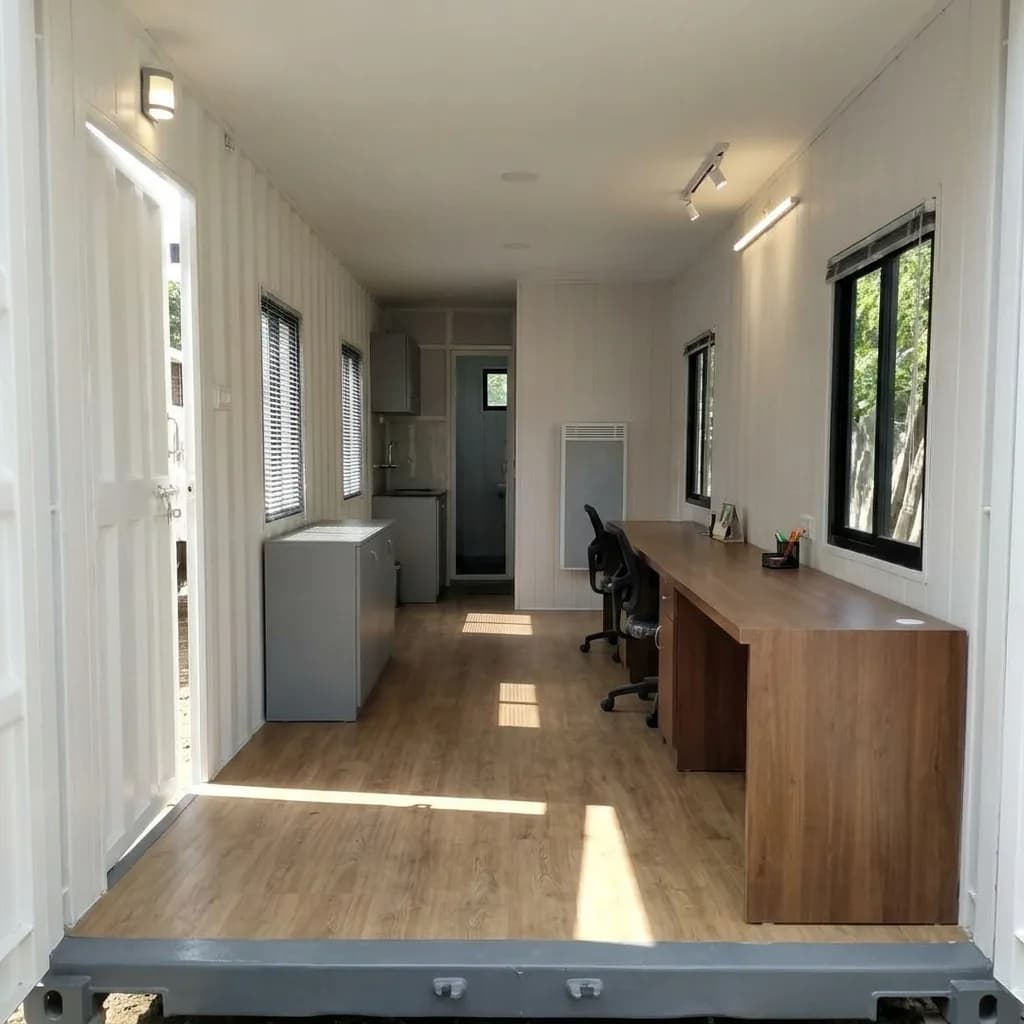

A 30 × 10 ft site office suited to project management teams. The additional length allows separate cabins for the site engineer, documentation and meetings within a single relocatable unit.
APPLICATIONS
- Main site office
- Project management
- Contractor office
- Multi-cabin layout
Standard inclusions
- 1–2 doors
- 4 sliding windows
- 5 LED tube lights
- 3 fans
- AC provisions
- 8 plug points
- Optional partition
Included in the standard build. The figure shown on this page is indicative; the price for this configuration is confirmed in your quotation.

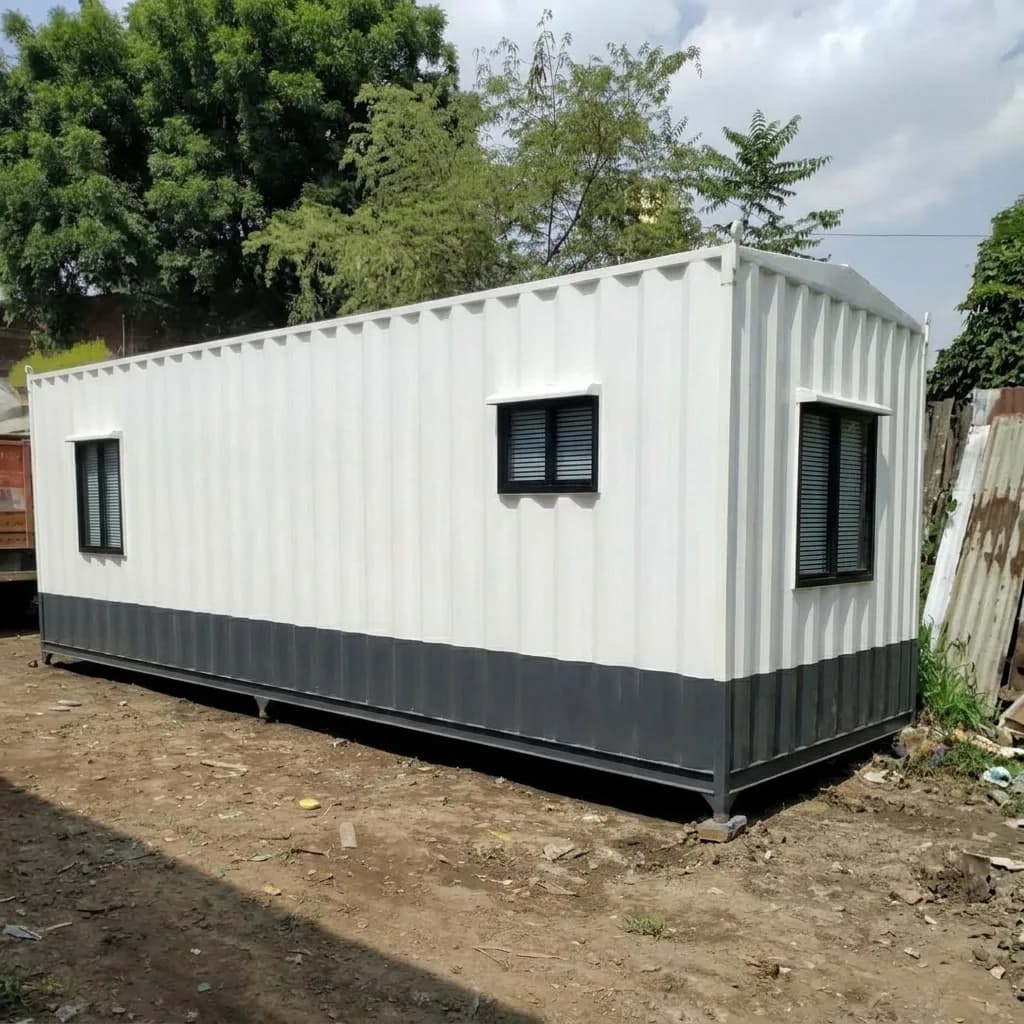

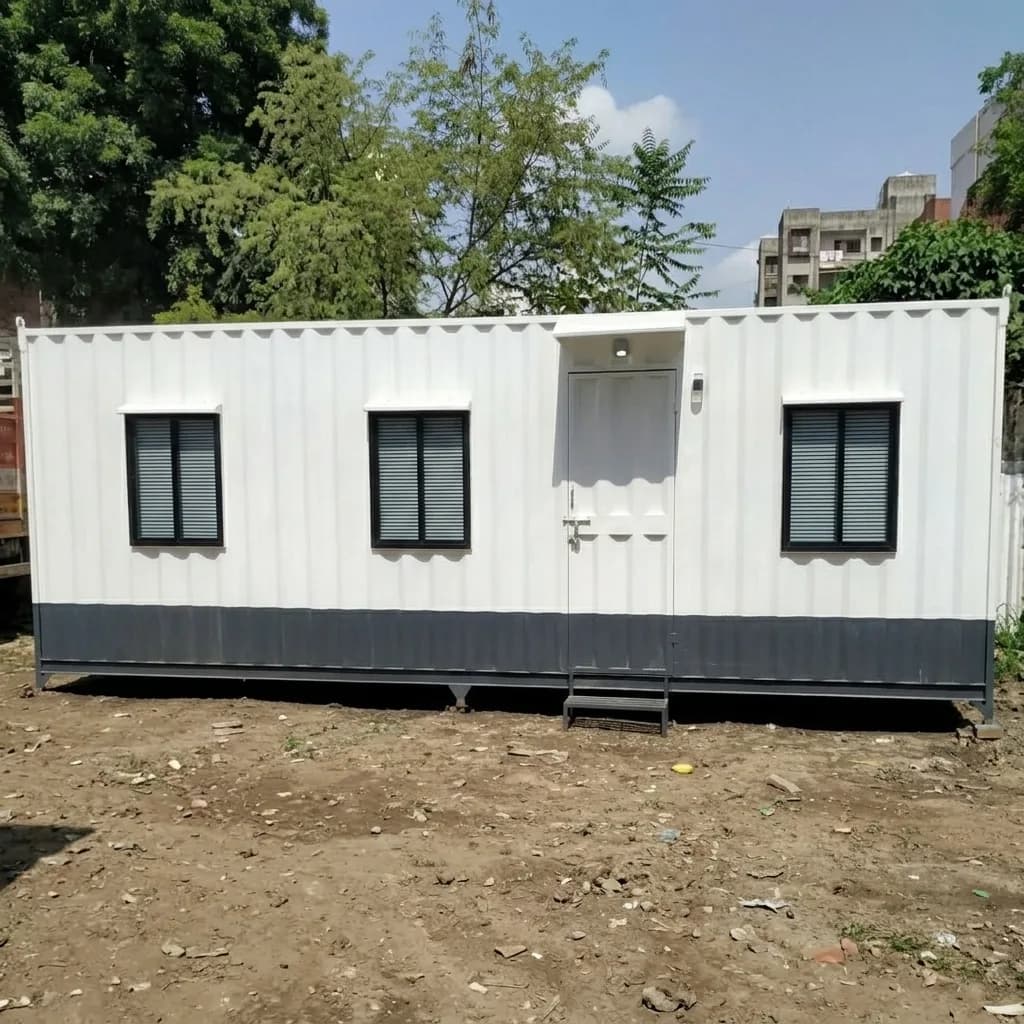

About the 30 × 10 ft Portable Site Office
The 30 × 10 ft site office is sized for a project management team. Its length allows separate cabins for the site engineer, documentation and meetings in one unit, and a partition is listed as an option.
What the price covers
- The figure on this page is a sample price for guidance. The price for your cabin, with GST, is confirmed in your quotation.
- Transport, unloading and site charges are quoted separately.
- Furniture, appliances and other items shown in the photos are included only if they are on the standard list or your quotation lists them.
Compare with similar models
- 20 ft Portable Site Office: A single-room 20 ft site office for a first site office or an engineer's cabin. 20 × 8 × 8.5 ft · ₹2,89,100 Total including 18% GST
- 40 × 10 ft Portable Site Office: A 40 × 10 ft site office for large projects that need several work zones. 40 × 10 × 8.5 ft · ₹4,00,000 per unit · excl. GST
See every model in our Portable Site Offices range.
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Bottom frame
- Heavy-duty MS rectangular / structural section as approved
- Main frame
- Welded MS framework
- Surface protection
- Anti-corrosion primer and approved exterior coating
- Lifting arrangement
- Suitable lifting hooks / points
Flooring
- Support
- Structural floor support
- Base board
- Cement-fibre board or approved equivalent
- Finish
- Commercial vinyl flooring or selected finish (anti-skid optional)
Walls
- Wall system
- Insulated wall system (PUF / EPS / rockwool as approved)
- Finish
- Interior and exterior finish selected by customer; joints sealed

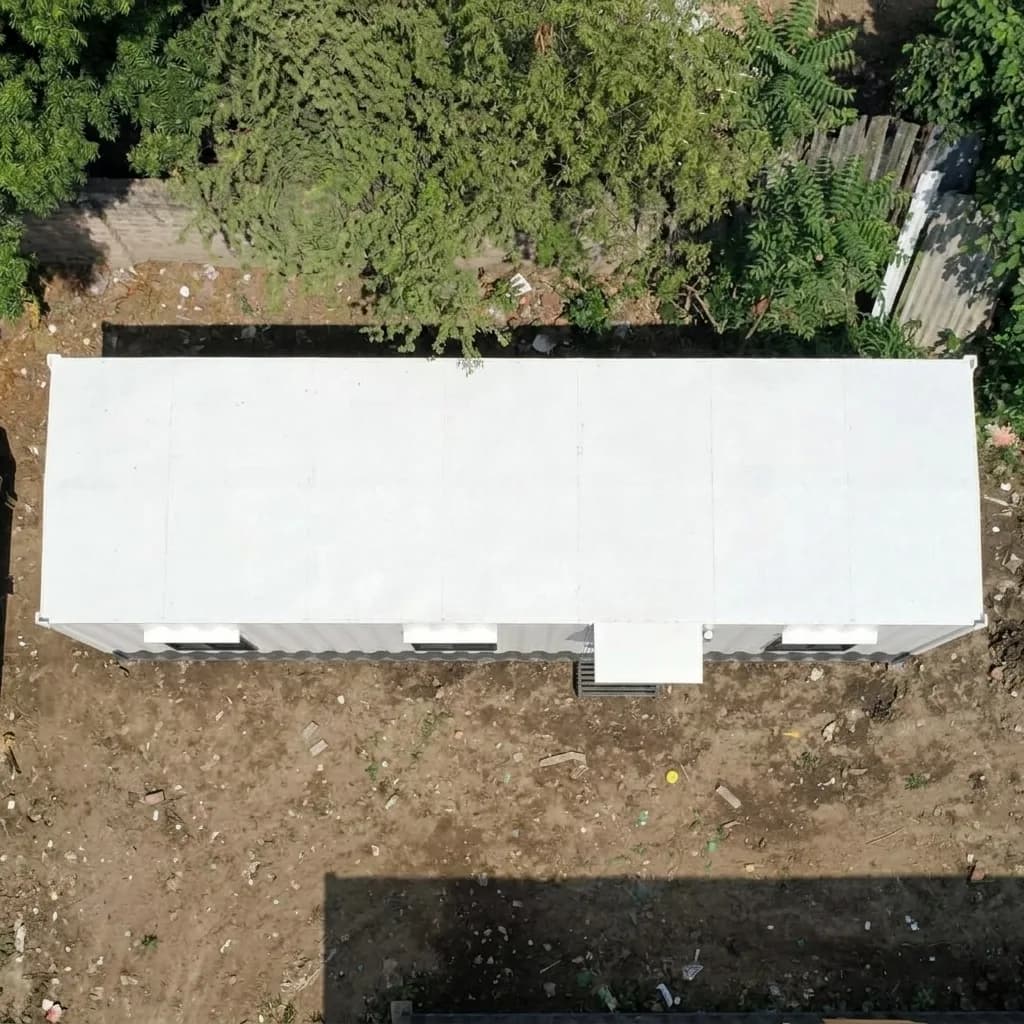

Roof
- Roof system
- Insulated roof with waterproof joint treatment and drainage
- Ceiling
- Optional false ceiling
Door
- Door
- MS / flush / aluminium door with locking hardware and handle
Windows
- Windows
- Aluminium / UPVC sliding windows with safety grill and locking
- Mesh
- Optional mosquito mesh
Electrical
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Distribution
- MCB distribution board with earthing point
- Fittings
- LED lights, cabin fans, plug points, AC provision, exterior bulkhead light
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Standard external size: 30 × 10 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.
Delivery, warranty & drawings
Manufacturing
Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
Delivery is scheduled separately.
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
The cabin structure is covered by a 5-year structural warranty, subject to customer maintenance against rust and paint deterioration.
Electrical items and hardware items supplied with the cabin are covered by a 1-year warranty from the confirmed date of delivery.
Labour support: free for the first 2 years from delivery, chargeable for the following 3 years. This is labour support, not a product warranty.
Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
