Two-Storey Labour Colony Block
Premium two-storey labour colony block — a row of individual insulated rooms over two floors, each with its own entrance, plus a balcony walkway, external staircase and landscaped courtyard.
₹46,84,600 grand total
incl. GST
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

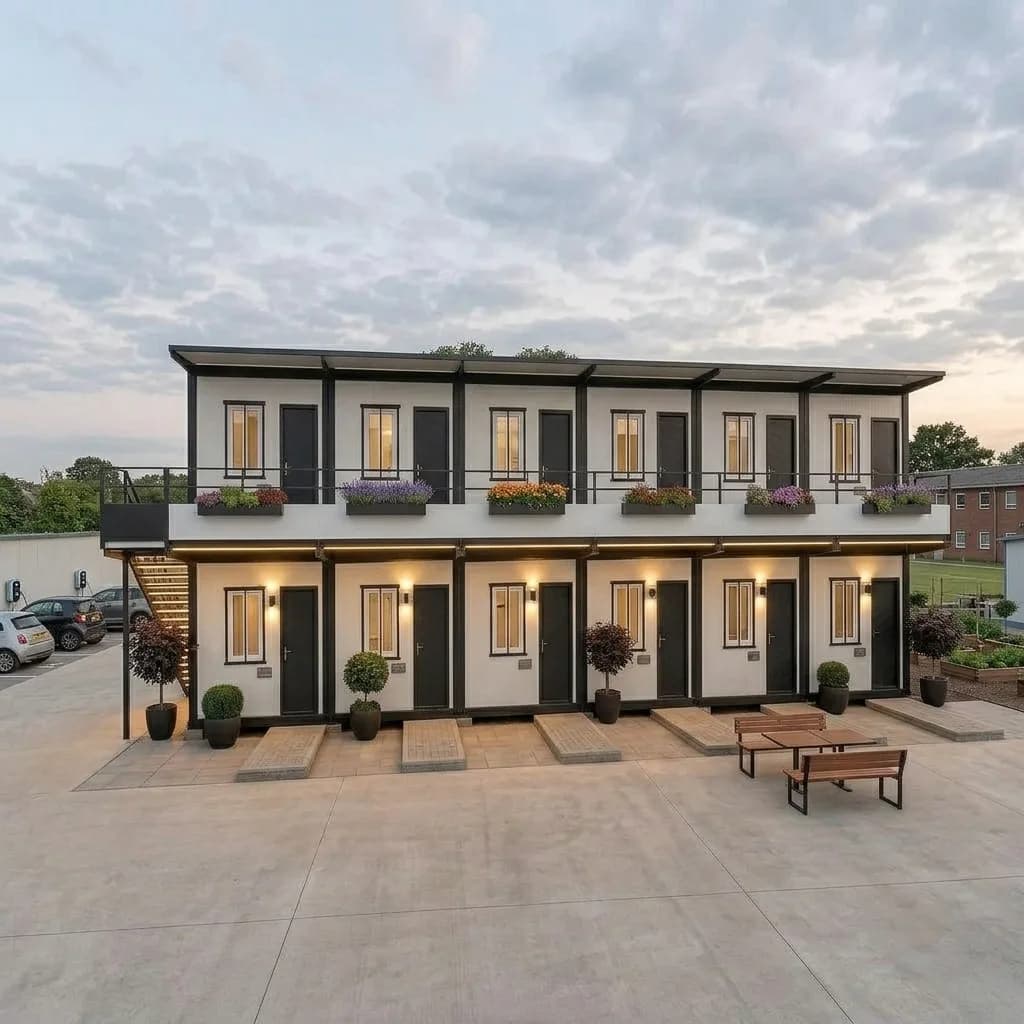

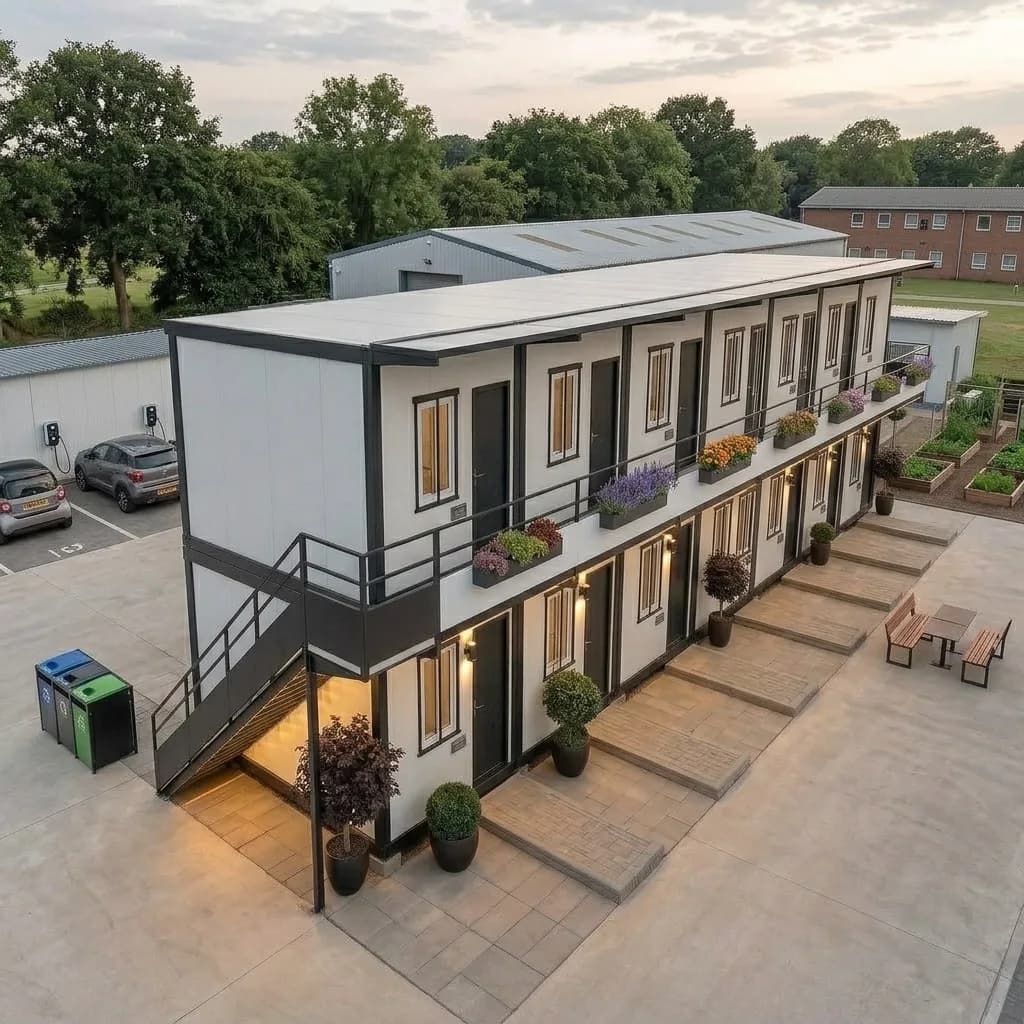

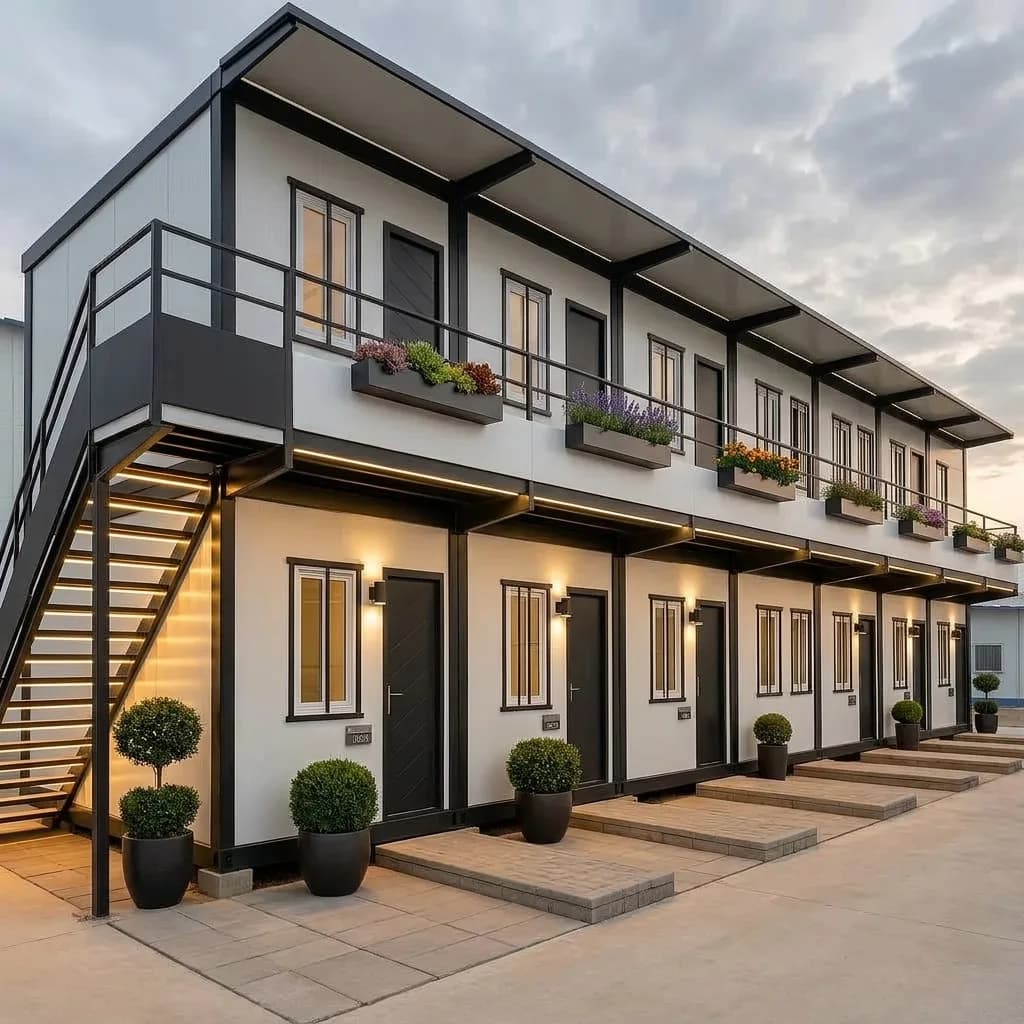

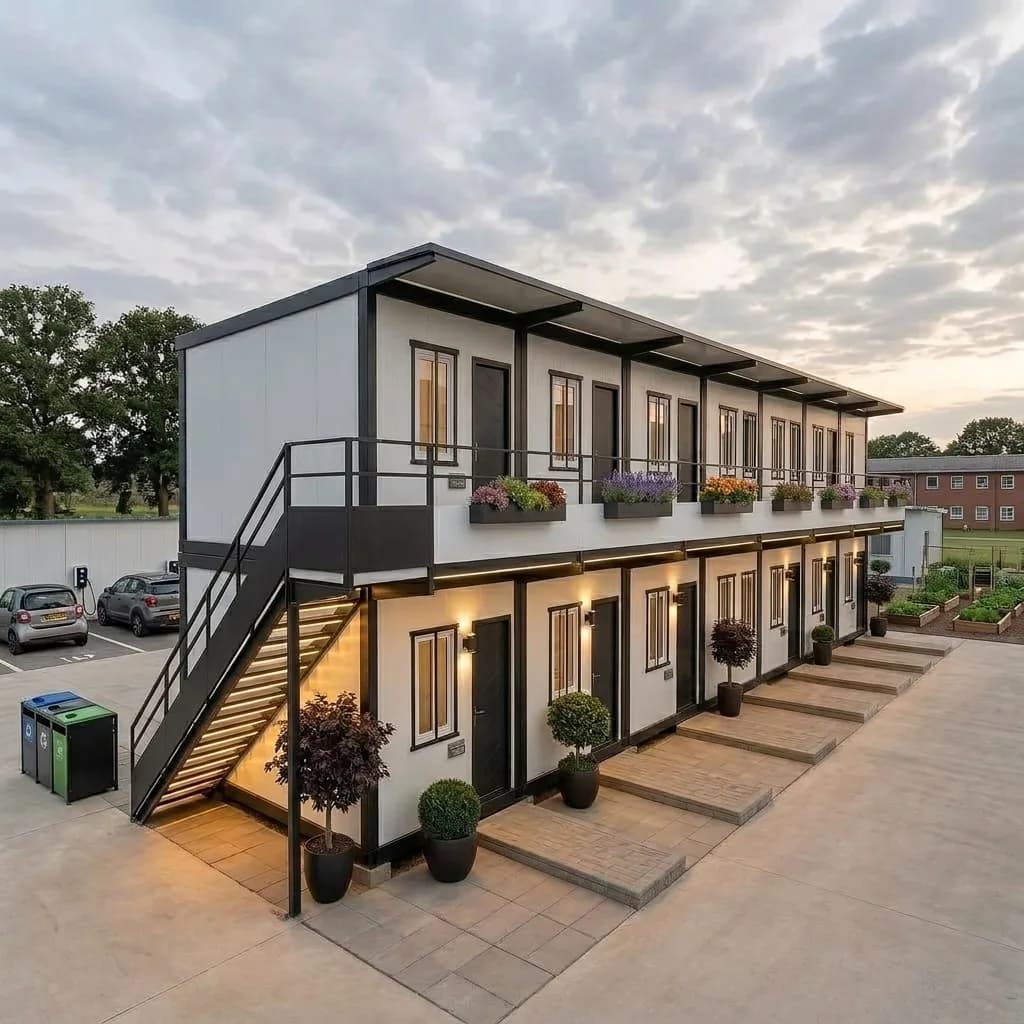

A premium two-storey (G+1) labour colony block built from insulated steel modules — a row of individual rooms on each floor, each with its own private entrance, window and wall light, served by an external staircase and a first-floor balcony walkway with railing and planters. Finished in white cladding with black trim, under a canopy roof with under-eave lighting, and set around a paved, landscaped courtyard. Delivered ready to occupy; room count, layout and finishes are configured to your headcount, and colours, fit-out and amenities (recycling points, EV charging and seating shown) are customisable. The room numbers, signage and staging shown are illustrative. Built as worker housing / labour colonies for construction sites, plants, estates and large projects across India.
Applications
- Labour colony / worker housing
- Construction site accommodation
- Plant, estate & mine colonies
- Staff / project housing
Standard inclusions
- G+1 double-storey block
- Individual room entrances
- First-floor balcony walkway
- External steel staircase
- Insulated wall & roof panels
- Window & wall light per room
- LED lighting & electrical points
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Configuration
- G+1 (ground + first floor) modular block on a steel frame; white cladding with black trim under a canopy roof
Units
- Layout
- A row of individual rooms per floor, each with its own private entrance
Walls
- Wall & roof
- Insulated PUF / sandwich panels; weatherproof canopy roof with under-eave lighting
Access
- Circulation
- External steel staircase and a first-floor balcony walkway with railing and planters
Openings
- Door & window
- A window and a personnel door to each room; wall sconce lighting
Interior
- Fit-out
- Insulated rooms with vinyl flooring; fit-out (beds, storage) to requirement
Electrical
- Fittings
- LED lighting, fan and power points per room; distribution board; AC-ready
Amenities
- Options
- Landscaped courtyard, seating, recycling points and EV-charging provision (shown; optional)
PUF Labour Colony Technical Specifications
Prefabricated PUF Labour Colonies are engineered according to the required capacity, number of floors, room layout and project location. The technical specification below provides the standard construction basis. Final structural members, quantities, layout and statutory requirements will be confirmed for the approved project.
Example G+1 Configuration — 60 × 24 ft
- Configuration
- G+1 prefabricated PUF labour accommodation
- Size
- 60 × 24 ft
- Approximate area
- 1,440 sq.ft per floor
- Total built-up area
- 2,880 sq.ft
- Rooms
- 4 ground-floor rooms + 4 first-floor rooms = 8 rooms
- External/common passage
- 4 ft clear width
- Staircase
- 3–4 ft clear width
- Internal partitions
- 6, subject to the approved layout
- Doors
- 8, subject to the final layout
- Sliding windows
- 16
- Fans
- 16
- LED lights
- 32
- General socket points
- 32
This is an example configuration for a G+1, 60 × 24 ft Labour Colony. Room count, fittings, dimensions and quantities change according to the selected building size and approved layout.
General technical specifications
Overall Building
- Configuration
- G+1 prefabricated PUF labour accommodation for the example design
- Building dimensions, floors and room layout
- According to the approved project
- External/common passage
- According to the approved layout; 4 ft clear in the example design
Main Structural Steel
- Columns
- MS structural columns using suitable IS sections, RHS or SHS according to the structural design
- Beams
- MS primary and secondary beams designed for applicable dead, live, wind and seismic loads
- Secondary steel
- MS RHS, SHS, C or Z sections supporting walls, roof and floors
- Connections
- Welded or bolted connections with base plates, gusset plates and anchor bolts
- Protection
- Anti-corrosion primer and finish coat; epoxy or PU coating where required
Final column, beam and steel-section sizes are not fixed here — they must be determined by a competent structural engineer for the actual project.
External PUF Walls
- Thickness
- 40–80 mm PUF sandwich panels
- Construction
- Steel skin + rigid PUF insulation core + steel skin
- Steel skin
- Recommended 0.50 mm PPGI, PPGL or GI sheet, subject to the approved make
- PUF core
- Approximately 40 ± 2 kg/m³ density, subject to manufacturer/test certification
- Joints
- Tongue-and-groove, cam-lock or equivalent weather-tight joint system
- Finish
- Factory colour-coated sheets with corner, base and opening flashings
Thickness and sheet make are a recommended range subject to approval — not a single guaranteed selected value.
PUF Roof
- Thickness
- 30–50 mm insulated PUF roofing panel
- Construction
- Steel skin + rigid PUF insulation core + steel skin
- Steel skin
- Recommended 0.50 mm PPGI, PPGL or GI sheet, subject to approved make
- Roof slope
- Adequate slope for rainwater drainage according to design
- Accessories
- Ridge, eave/gable and drip flashings, gutters and downpipes
- Fixing
- Corrosion-resistant self-drilling screws with EPDM washers
- Sealing
- Weather-resistant sealant at joints and penetrations
Internal PUF Partitions
- Thickness
- 30 mm PUF sandwich panel
- Optional upgrade
- 50 mm for improved thermal/acoustic performance
- Facing
- 0.40–0.50 mm PPGI, PPGL or GI skins
- Support
- MS or aluminium U-channels and framing
- Quantity
- According to the approved layout
- Example configuration
- 6 partitions
Floor System
- Ground floor
- RCC/PCC base or foundation under civil scope, with damp-proof treatment where required
- First floor
- MS floor joists and structural flooring designed for occupancy loads
- Decking
- Cement/fibre-cement board or approved structural board
- Finish
- PVC/vinyl flooring or tiles with skirting
The RCC/PCC base and foundation are civil-scope works and are not part of the cabin-manufacturing (factory) scope unless the approved project quotation states they are included.
Doors
- Example quantity
- 8, subject to final layout
- Typical size
- Approximately 900 × 2100 mm
- Shutter
- Insulated steel/PUF door or approved equivalent
- Hardware
- Lock, handle, hinges, stopper and sealing; closer where required
Sliding Windows
- Example quantity
- 16
- Typical size
- Approximately 1200 × 1200 mm; final size according to design
- Frame
- Powder-coated aluminium sliding frame
- Glazing
- 5 mm glass or approved glazing; toughened glass where required
- Accessories
- Mosquito mesh, locks/handles, glazing beads and silicone sealing
Electrical Installation
- Example lighting
- 32 LED lights, typically 18–20 W or equivalent
- Example fans
- 16 ceiling fans, typically 1200 mm sweep with regulators
- Example sockets
- 32 general socket points
- Heavy-load points
- 16A points separately where required
- Wiring
- FR/FRLS copper cables in suitable conduits with separate light, fan and socket circuits
- Distribution board
- Main DB with incomer, MCBs, RCCB/RCBO, neutral and earth busbars and labels
- Earthing
- Dedicated earthing electrodes/conductors, equipment earthing and structural bonding
- Testing
- Insulation, polarity, continuity, earth resistance and protective-device testing
The lighting, fan and socket quantities above are the 60 × 24 ft example — actual quantities follow the approved layout and load schedule.
Staircase and Railing
- Staircase
- MS structural staircase
- Example clear width
- 3–4 ft
- Structure
- Designed stringers, treads and landing
- Treads
- MS chequered plate or approved anti-skid tread
- Railing
- MS handrail and guardrail on exposed sides
- Finish
- Anti-corrosion primer and finish coat
External Passage
- Example clear width
- 4 ft
- Structure
- MS support frame safely connected to the main structure
- Roof
- PUF/insulated roof or suitable metal roof with flashing
- Floor
- Durable anti-skid finish with drainage
- Lighting
- LED points for the passage and staircase
Fire and Life Safety
- Extinguishers
- ABC extinguishers; CO₂ extinguishers near electrical equipment where required
- Emergency provisions
- Emergency lights and exit signs as required
- Detection
- Smoke/fire alarm or detection where required by occupancy or authority
- Escape
- Clear, unobstructed staircase and evacuation route
Fire and life-safety provisions are supplied as required by the approved design, occupancy and competent authority — not every item is automatically included.
Rainwater and Weather Protection
- Gutters/downpipes
- GI, PPGI or approved gutters and rainwater downpipes
- Flashings
- Ridge, corner, base, window, door and roof-edge flashings
- Sealants
- Weather-resistant PU, silicone or butyl sealing
Fasteners and Accessories
- Fasteners
- Galvanized/corrosion-resistant structural and panel fasteners
- Washers
- EPDM sealing washers for exposed roofing screws
- Trims
- Internal/external corner, base, door/window trims and flashings
Fabrication and Installation
- Factory work
- Controlled factory fabrication of steel and PUF components
- Transport
- Safe packing and transportation to the site
- Erection
- Foundation/interface inspection, steel erection, PUF panels, roof, doors/windows, electrical work and finishing
- Handover
- Cleaning, testing, snag correction and completion documentation
This describes the fabrication and installation process only — it does not change whether transportation is included in any quoted price.
Quality Documents
- Certificates
- Material/test certificates for steel, PUF panels, cables and major components where required
- Drawings
- General arrangement/architectural, structural, electrical and plumbing drawings as applicable
- Warranty
- Warranty terms for panels, electrical components and workmanship as agreed in the official quotation
Engineering & statutory note
This technical information is a quotation and specification basis, not a stamped structural design. Final steel sizes, foundations, floor loads, wind and seismic design, fire requirements, electrical load schedule and statutory requirements must be finalized for the actual site by the competent engineer and relevant authority.
Available sizes
Custom sizes are built to order — share your requirement for an exact layout.
- G+1 multi-unit block· individual rooms; unit count & layout built to headcount
Delivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
