Portable Labour Accommodation

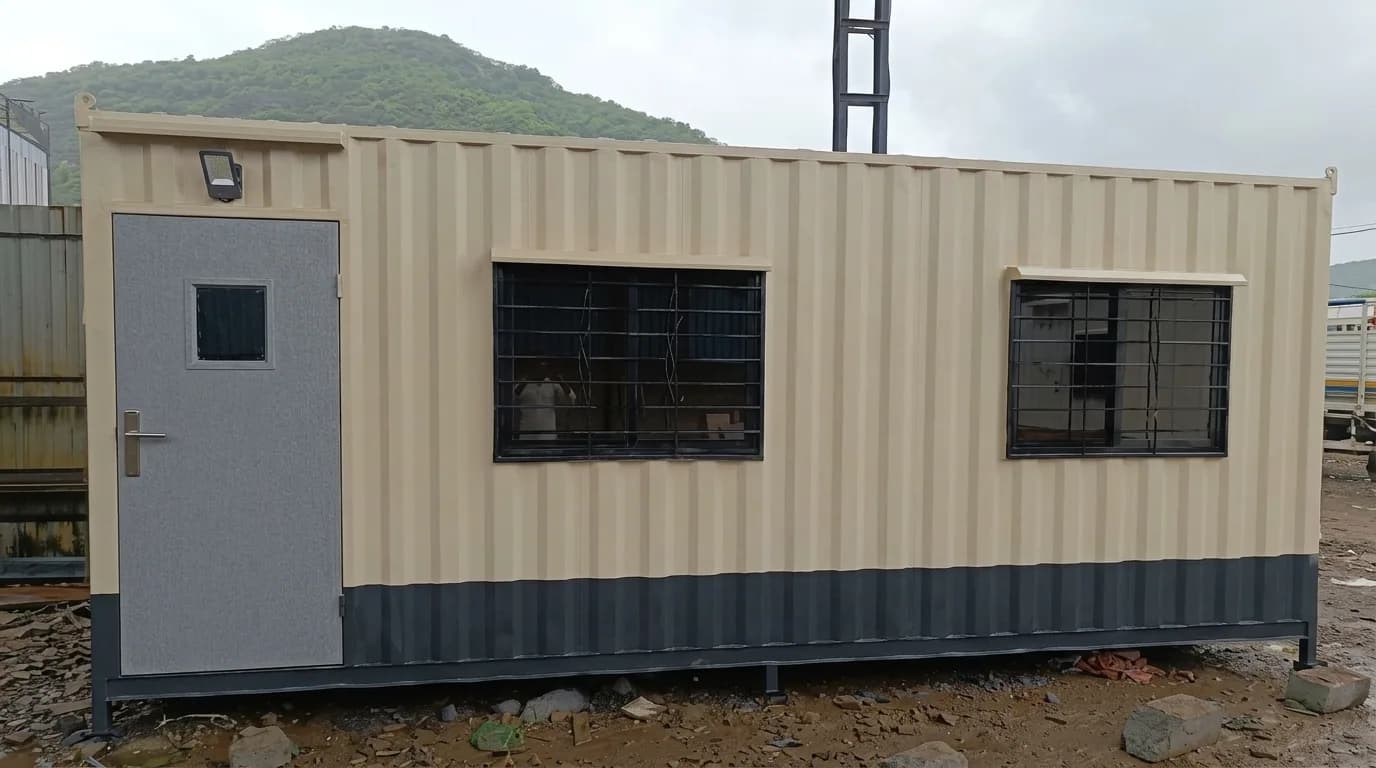

Portable Labour Accommodation Cabin
20 × 10 × 8.5 ft
- Labour housing
- Workforce accommodation
₹2,40,000 – ₹3,00,000 per unit
Sample price — request a quote
G+1 Labour Accommodation Block
Two-storey (G+1) portable labour accommodation block — multiple insulated rooms over two floors with an external staircase, balcony walkway and configurable fit-out.
₹46,61,000 grand total
incl. GST
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

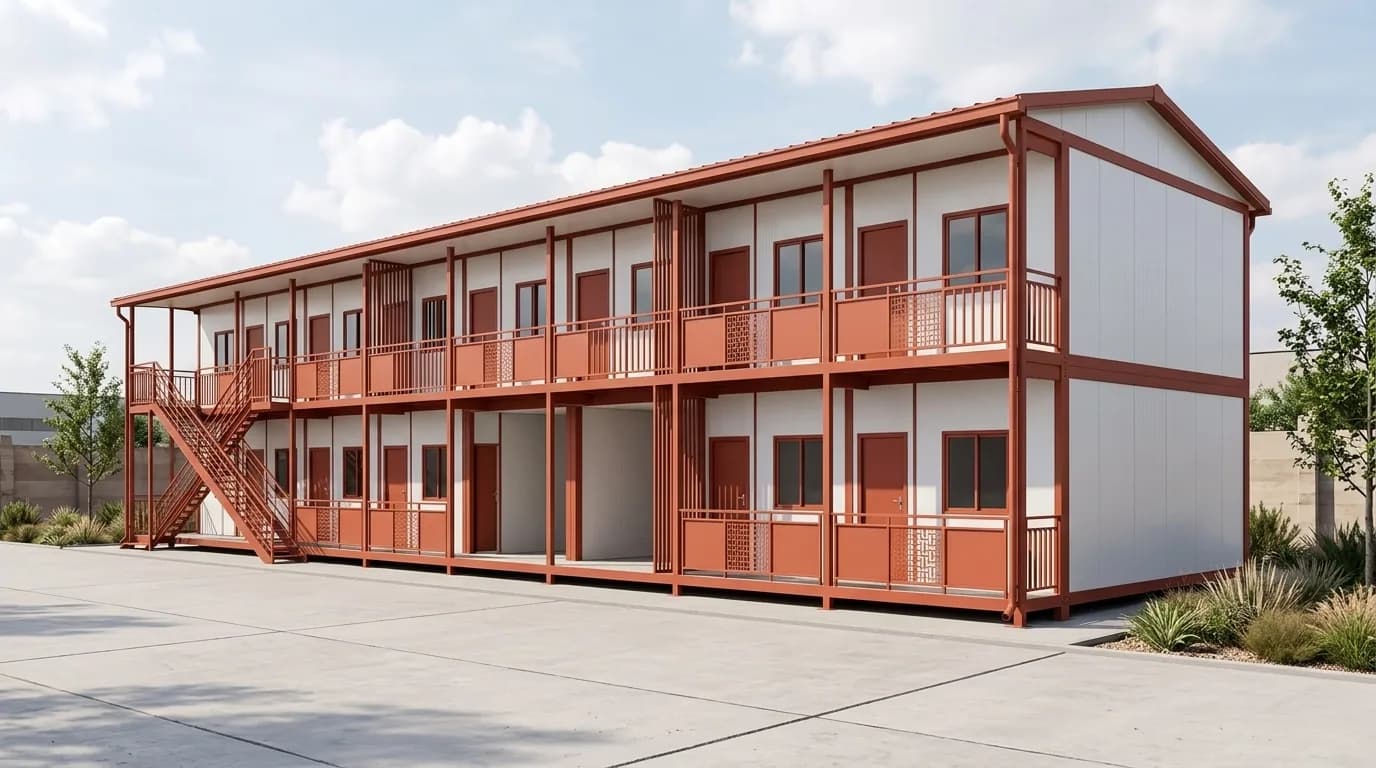

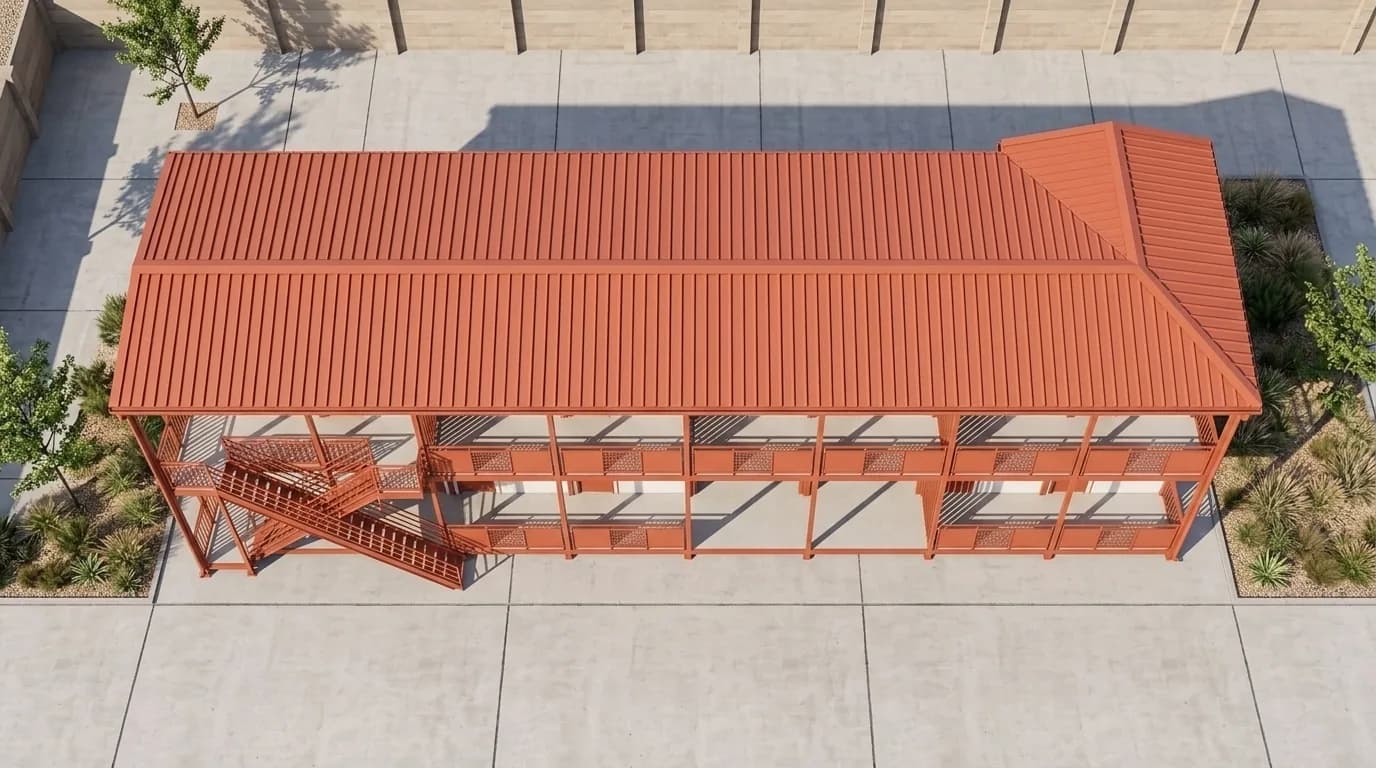

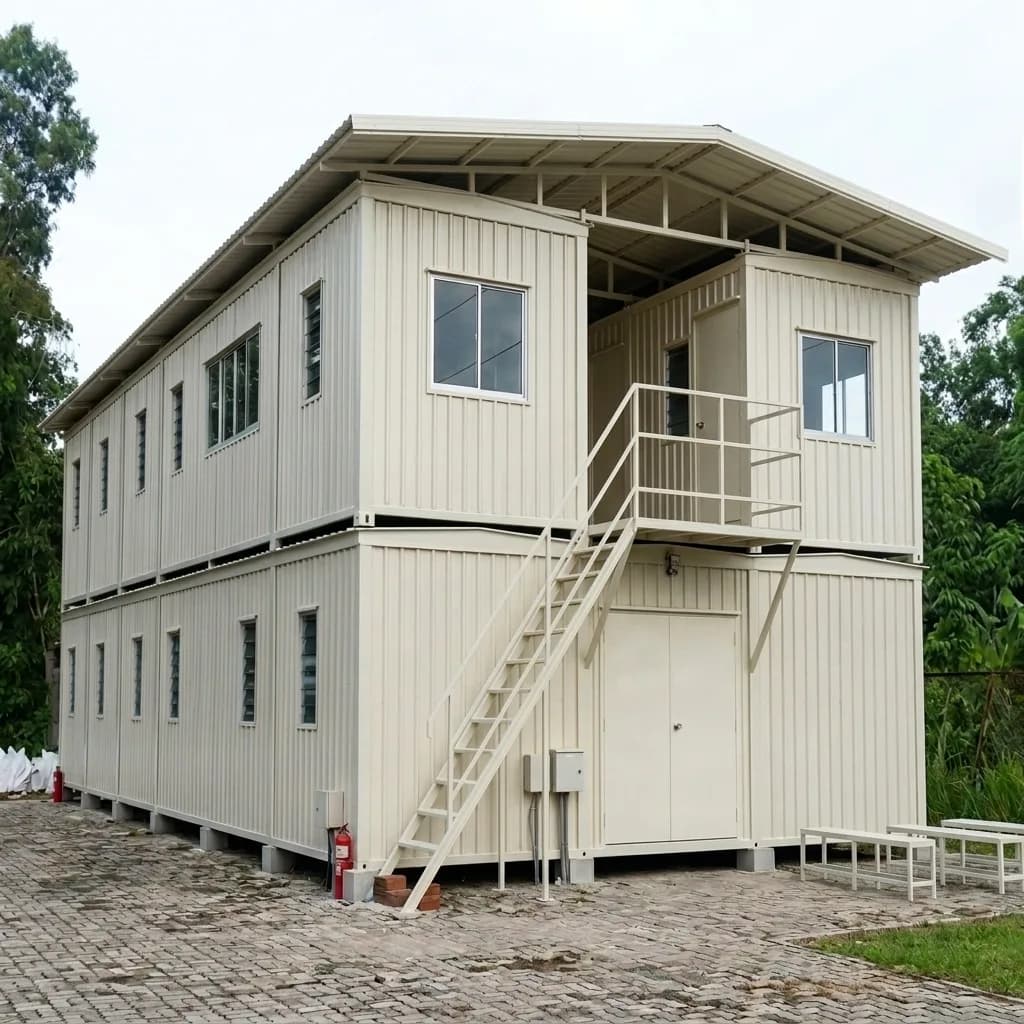

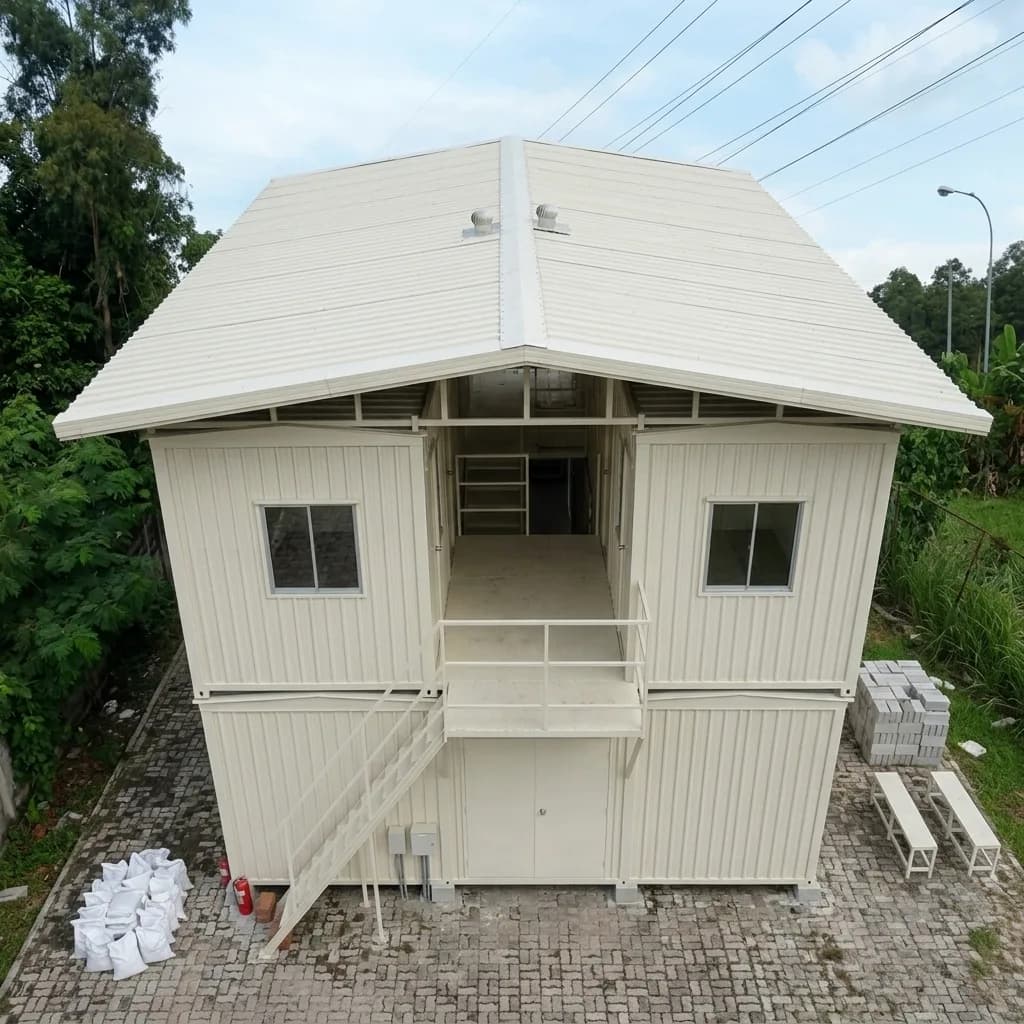

A double-storey (G+1) portable labour accommodation block built from insulated steel modules — a row of rooms on each floor served by an external staircase and a first-floor balcony walkway, under a gabled canopy roof, with louvre-ventilated walls and a window to every room. Raised on pedestal footings and delivered ready to occupy. The interior shown is fitted out as an open admin / office space with workstations, storage and PPE stations; layouts (dormitories, offices, mess, washrooms) are configured to your headcount, and colours, room count and fit-out are customisable. The staging and surroundings shown are illustrative. Built for construction sites, plants, mines and large projects across India.
Applications
- Construction site accommodation
- Labour / worker housing
- Plant & mine camps
- Project offices & dormitories
Standard inclusions
- G+1 double-storey structure
- External steel staircase
- First-floor balcony walkway
- Insulated wall & roof panels
- Windows & louvre ventilation to each room
- LED lighting & electrical points
- Pedestal footings
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Configuration
- G+1 (ground + first floor) modular block on a steel frame with pedestal footings and an external staircase
Walls
- Wall & roof

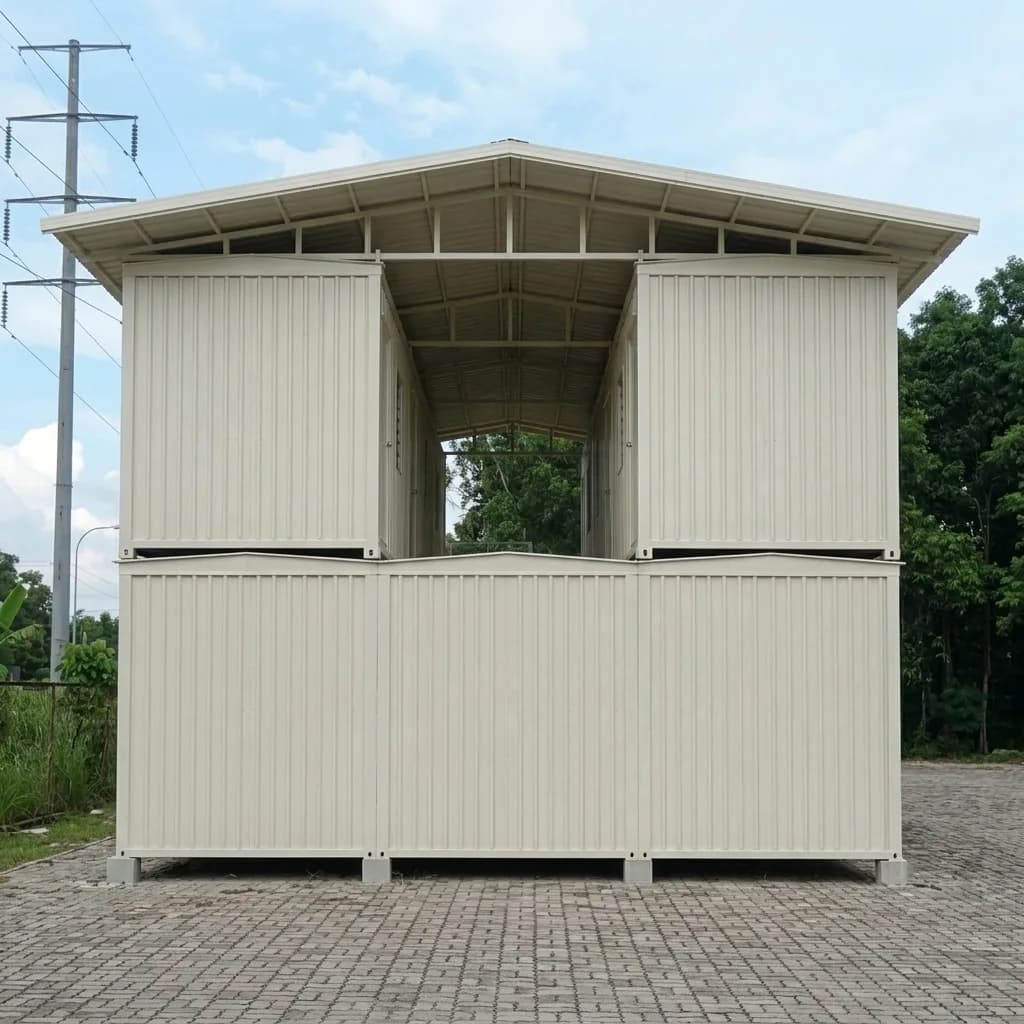

- Insulated PUF / sandwich panels; gabled canopy roof for weather protection
Rooms
- Layout
- A row of rooms per floor — configurable as dormitories, offices, mess or washrooms
Access
- Circulation

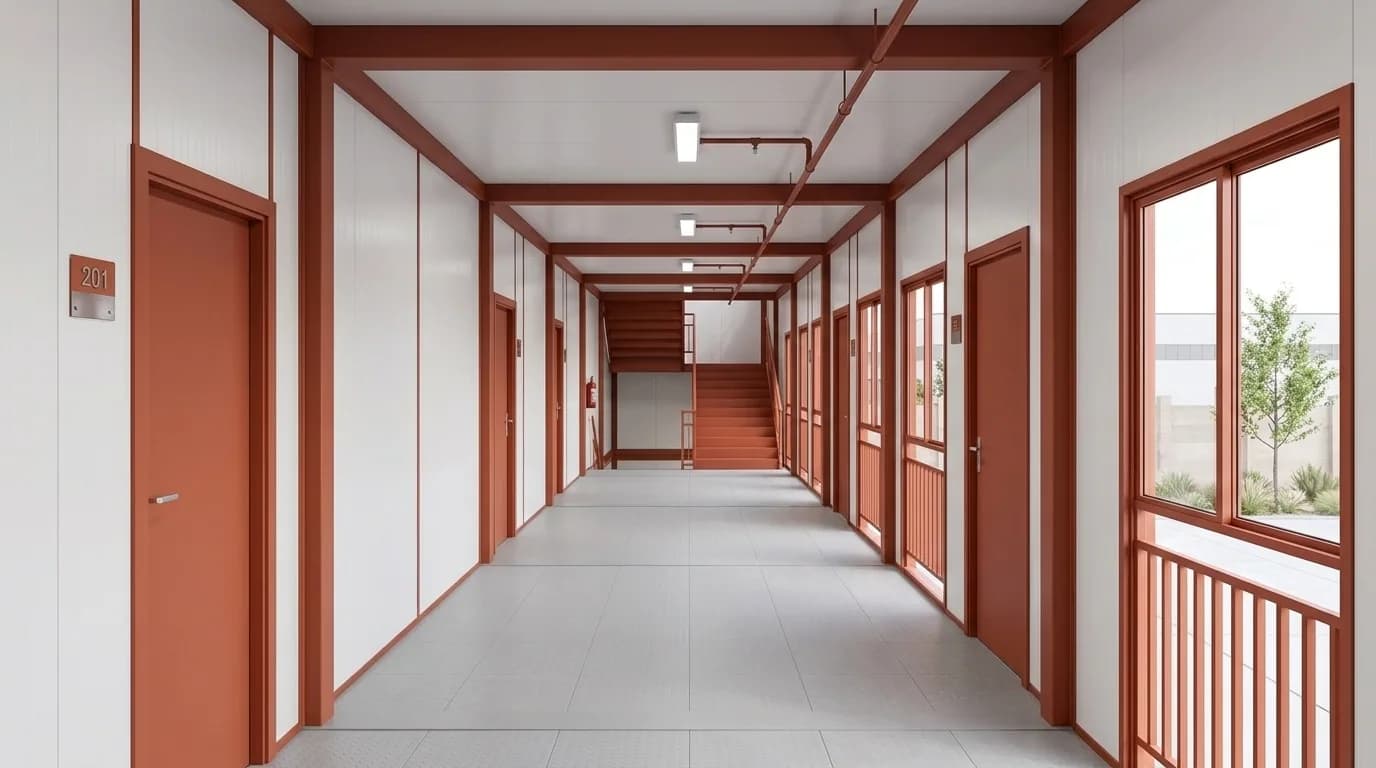

- External steel staircase and a first-floor balcony walkway with railing
Ventilation
- Air

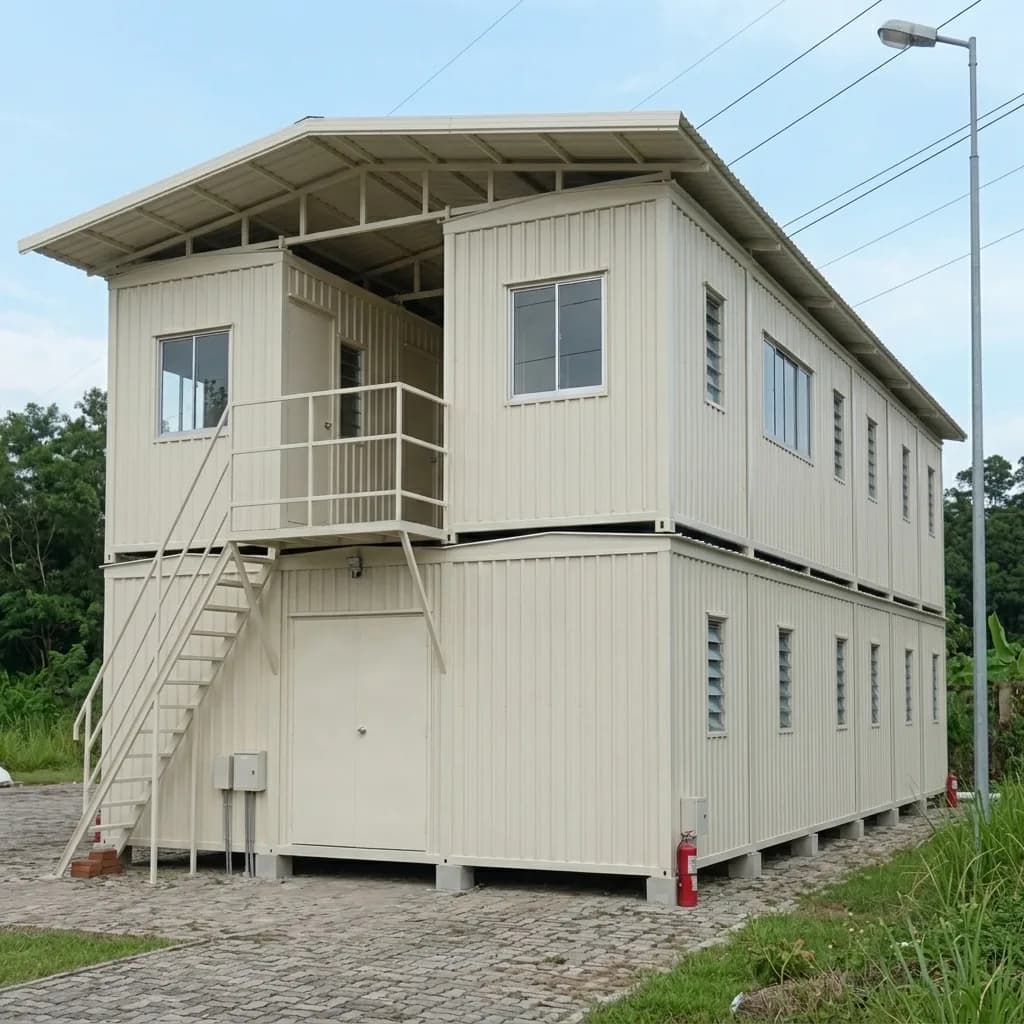

- Windows and wall louvre vents to each room; AC-ready
Interior
- Fit-out

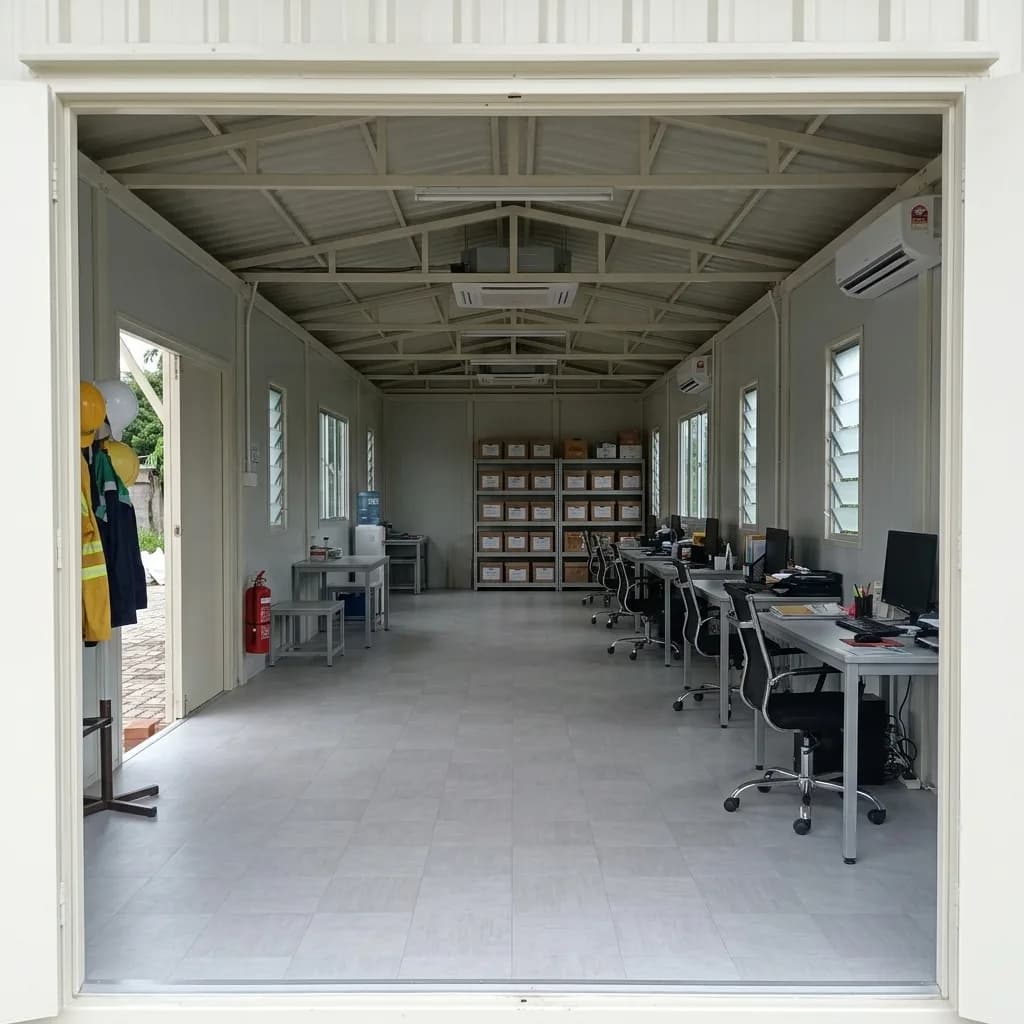

- Fit-out to requirement — the unit shown is an open admin / office layout with workstations and storage
Electrical
- Fittings
- LED lighting, fan and power points, distribution board; AC provision
Amenities
- Options
- Washroom, kitchen / mess and PPE-station options; fire-extinguisher points
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Custom sizes are built to order — share your requirement for an exact layout.
- G+1 double-storey block· multi-room; room count & layout built to headcount
Delivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
