Portable Toilet Cabins

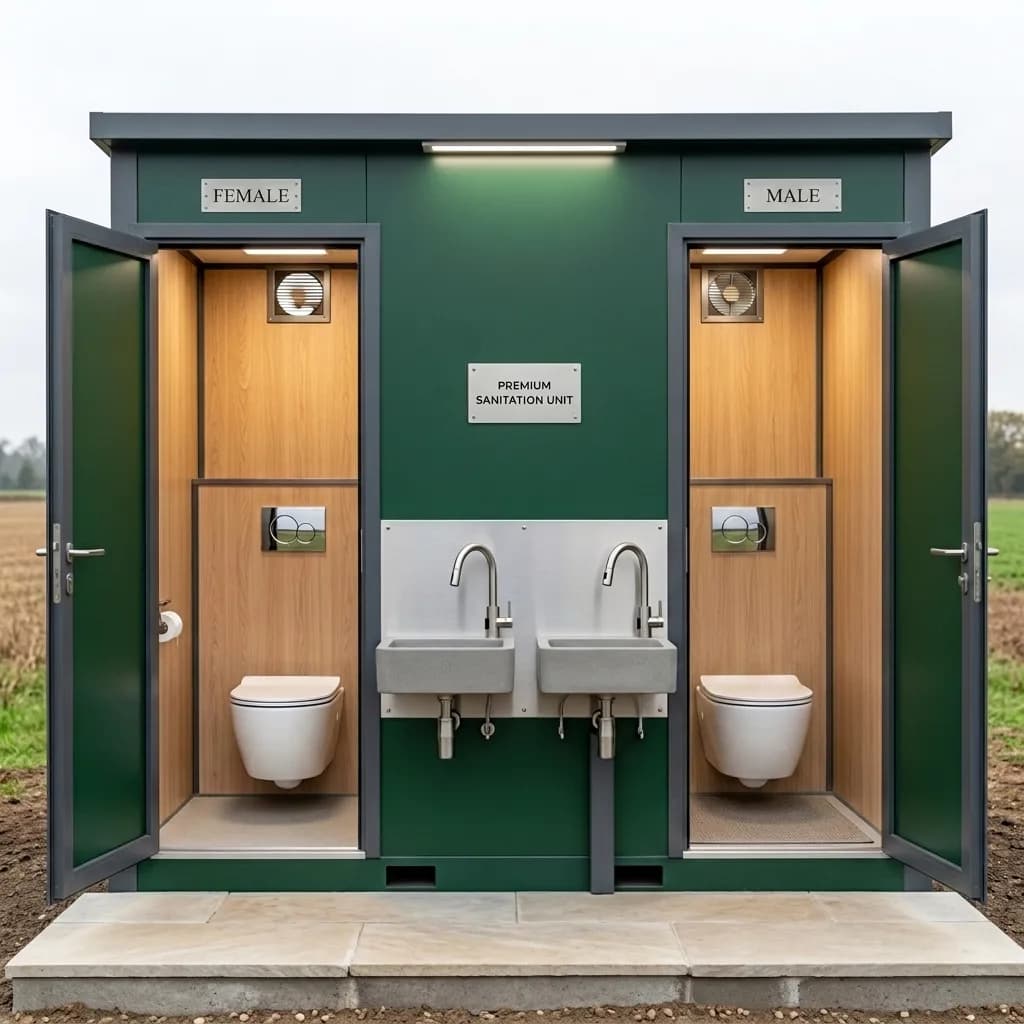

Male & Female Portable Toilet Cabin
- Construction & work sites
- Events & public gatherings
₹4,13,000 grand total
Portable Toilet Cabin
Hygienic single or multi-unit portable toilet block.
From ₹55,000 per unit
Sample price — request a quote · excl. GST
- Size
- 4 × 4 × 8 ft
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview
A portable toilet cabin available as single or multi-unit blocks for sites and public areas. Built with easy-clean surfaces, ventilation and plumbing connections. WC type, urinals and washbasins are configurable.
Applications
- Construction sites
- Events
- Public areas
- Labour camps
Standard inclusions
- WC
- Water tank connection
- Ventilator
- Light point
- Door with lock
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Frame
- MS frame with anti-corrosion coating
Walls
- Panels
- Easy-clean panels; FRP options available
Plumbing
- Fittings
- WC, washbasin/urinal as selected, inlet/outlet connections
Electrical
- Fittings
- Light point and ventilator
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
- Sanitary Fittings
- Cera sanitary fittings
Sanitary fittings: Cera, where included in the approved specification.
Available sizes
Standard external size: 4 × 4 × 8 ft. Custom sizes are built to order — share your requirement for an exact layout.
Request a custom sizeDelivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
