40 × 10 ft Portable Site Office Price in Bangalore

Maximum-length site office for large project setups.

₹4,00,000 per unit

excl. GST

GST @ 18%
₹72,000
Total incl. GST
₹4,72,000

Transport, unloading and site charges are quoted separately, so this is not the final payable amount.

SIZE
40 × 10 × 8.5 ft
AVAILABILITY
Made to order
LEAD TIME
Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
WARRANTY
5-year structural, subject to customer maintenance against rust and paint deterioration · 1-year on supplied electrical and hardware items

Buy Now opens checkout with this quantity to request a quotation for this cabin; no payment is taken online. Online payment is available for orders up to ₹5,00,000 including GST and delivery. Larger orders are arranged through a quotation. Add to Cart keeps this cabin in your cart, and a cart line does not reserve stock.

Overview

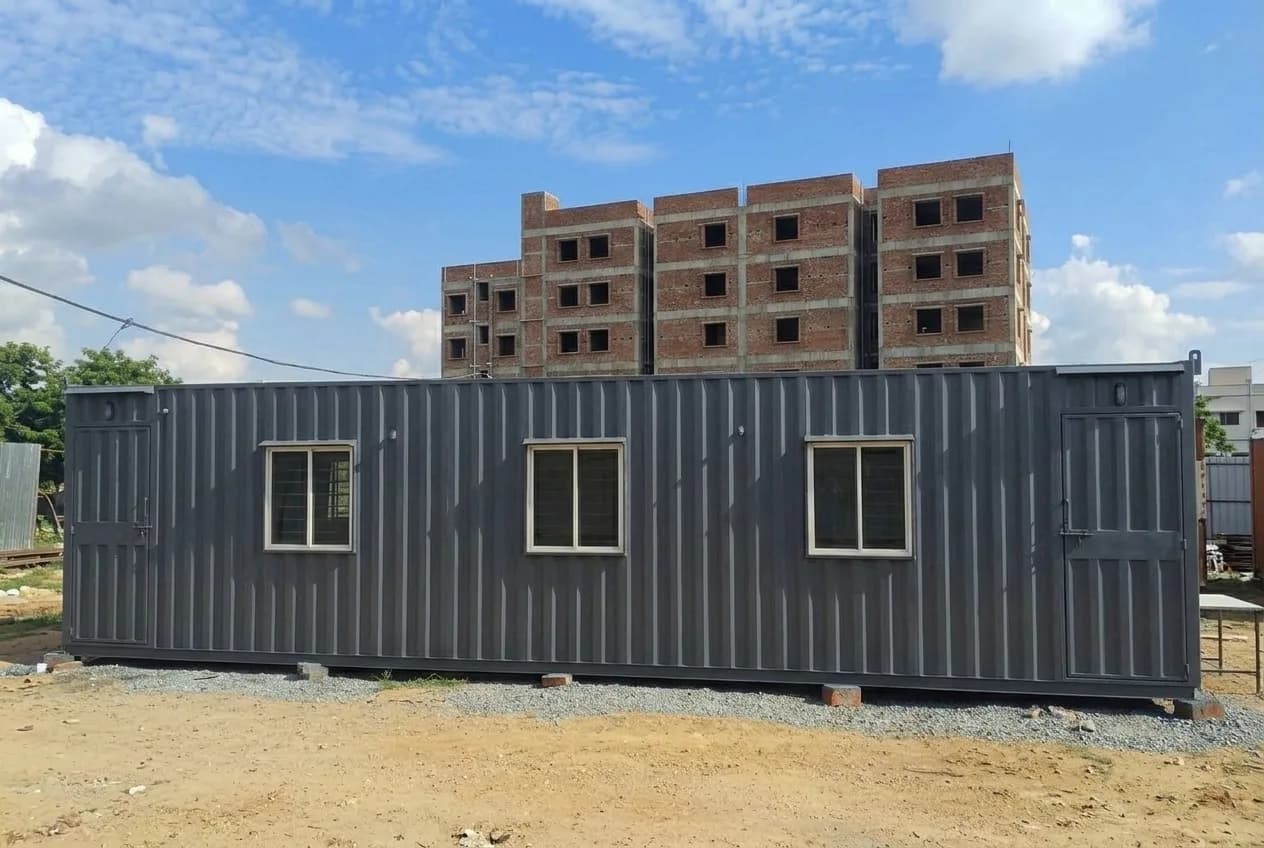

A 40 × 10 ft site office for large projects requiring multiple work zones — engineering, admin, meeting and storage — in one insulated, relocatable structure. Fully customisable internal layout and electricals. Partitions are optional and charged separately; they are not included in the displayed price or its total including GST. The exterior photos show a two-door, three-window build. The listed price covers the standard layout with one door and five windows. Furniture shown is not included in the listed price.

APPLICATIONS

  • Large site office
  • Head site office
  • Multi-department office

Standard specification included in this price

  • 4 fans
  • 5 LED tubelights
  • 2 AC points
  • 10 plug points
  • 5 sliding windows with grill
  • 1 door with bulkhead light

About the 40 × 10 ft Portable Site Office

The 40 × 10 ft site office is for large projects that need several work zones (engineering, admin, meetings and storage) in one structure. Its internal layout and electricals are fully customisable, and partitions are part of its standard list.

What the price covers

  • The published price is ₹4,00,000 + 18% GST (₹4,72,000 including GST), for the cabin with the standard specification listed on this page.
  • Transport, unloading and site charges are quoted separately.
  • Furniture, appliances and other items shown in the photos are included only if they are on the standard list or your quotation lists them.

Compare with similar models

See every model in our Portable Site Offices range.

Specifications & materials

Final materials always match your approved quotation, drawing and purchase order.

Structure

Bottom frame
Heavy-duty MS rectangular / structural section as approved
Main frame
Welded MS framework
Surface protection
Anti-corrosion primer and approved exterior coating
Lifting arrangement
Suitable lifting hooks / points

Flooring

Support
Structural floor support
Base board
Cement-fibre board or approved equivalent
Finish
Commercial vinyl flooring or selected finish (anti-skid optional)

Walls

Wall system
Insulated wall system (PUF / EPS / rockwool as approved)
Finish
Interior and exterior finish selected by customer; joints sealed

Roof

Roof system
Insulated roof with waterproof joint treatment and drainage
Ceiling
Optional false ceiling

Door

Door
MS / flush / aluminium door with locking hardware and handle

Windows

Windows
Aluminium / UPVC sliding windows with safety grill and locking
Mesh
Optional mosquito mesh

Electrical

Wiring
Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Distribution
MCB distribution board with earthing point
Fittings
LED lights, cabin fans, plug points, AC provision, exterior bulkhead light

Technical Material Specifications

Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.

Bottom Frame
100 × 50 mm formed MS C-channel, 5 mm thick
Bottom Stiffeners
100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
Top Frame
Frame made from 50 × 50 mm square pipe, 2 mm thick
Top Stiffeners
50 × 25 × 1.4 mm square pipe
Side Posts
50 × 50 × 1.6 mm square pipe
Side-Wall Stiffeners
50 × 25 × 1.4 mm square pipe
External Wall Panelling
Specially corrugated Corten steel sheet, 1.2 mm thick
Internal Wall Panelling
7.3 mm pre-laminated MDF board
External Roof
1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
Bottom Flooring
18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
MS Door
25 × 25 mm MS frame with 1.2 mm corrugated sheet
Insulation
Roof: 50 mm glass wool; Walls: 12 mm Armaflex
Wiring
Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Electrical Fittings
220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
External Painting
Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
Lifting Hooks
Specially formed hooks for convenient lifting and shifting

Available sizes

Standard external size: 40 × 10 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.

Delivery, warranty & drawings

Manufacturing

Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)

Delivery is scheduled separately.

Delivery

Delivery across Karnataka and India; transportation quoted separately.

Warranty

The cabin structure is covered by a 5-year structural warranty, subject to customer maintenance against rust and paint deterioration.

Electrical items and hardware items supplied with the cabin are covered by a 1-year warranty from the confirmed date of delivery.

Labour support: free for the first 2 years from delivery, chargeable for the following 3 years. This is labour support, not a product warranty.

Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
