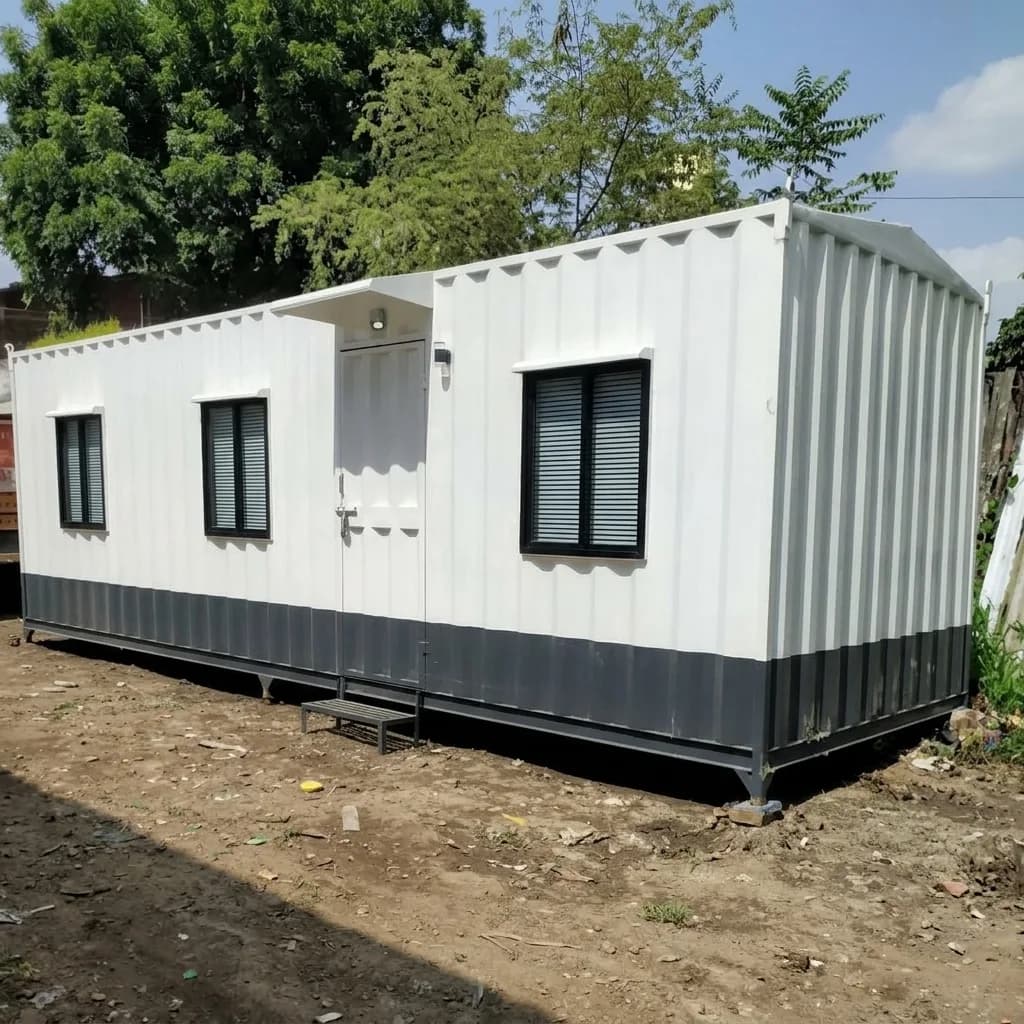

30 × 10 ft Portable Site Office
30 × 10 × 8.5 ft
- Main site office
- Project management
₹3,80,000 – ₹4,60,000 per unit
Sample price — request a quote
20 ft Portable Site Office
Compact single-room portable site office — furnished, insulated and ready for construction sites.
₹2,89,100 grand total
incl. GST
- Size
- 20 × 8 × 8.5 ft
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

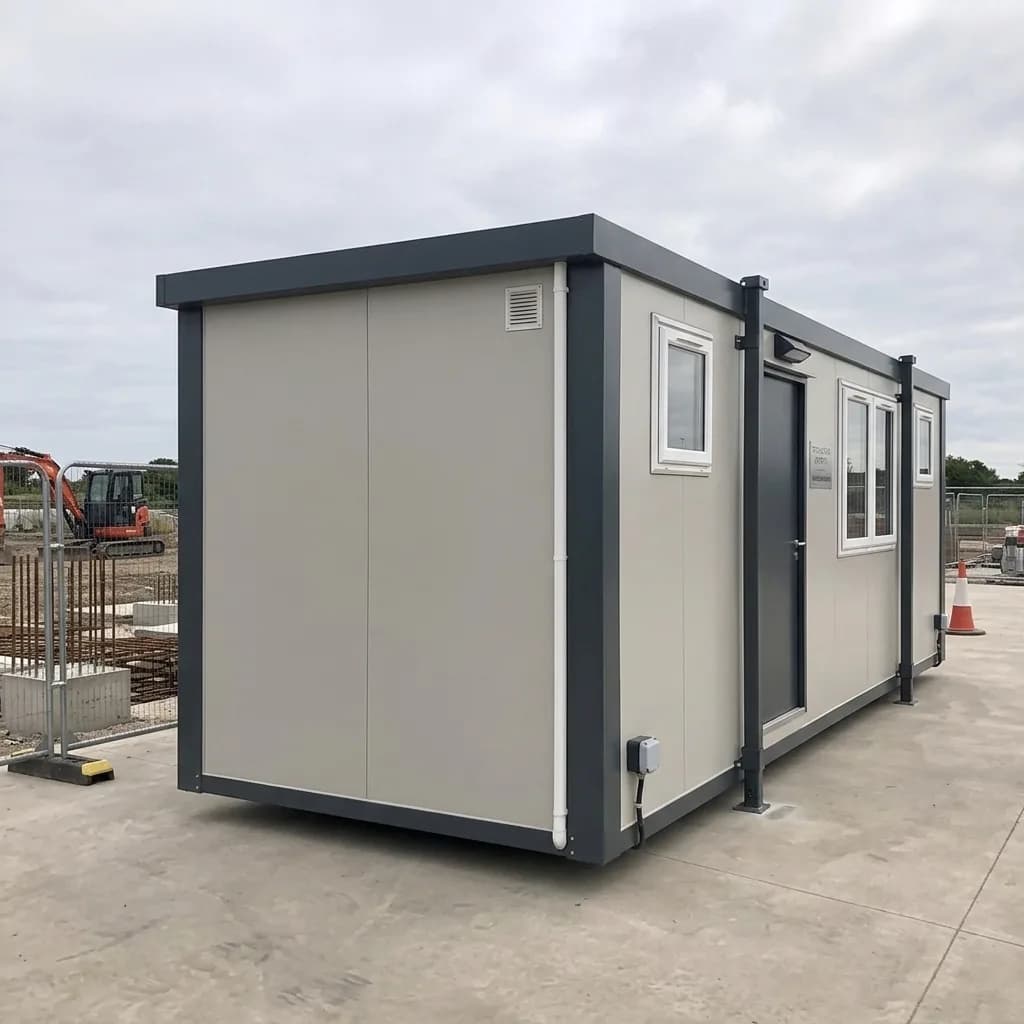

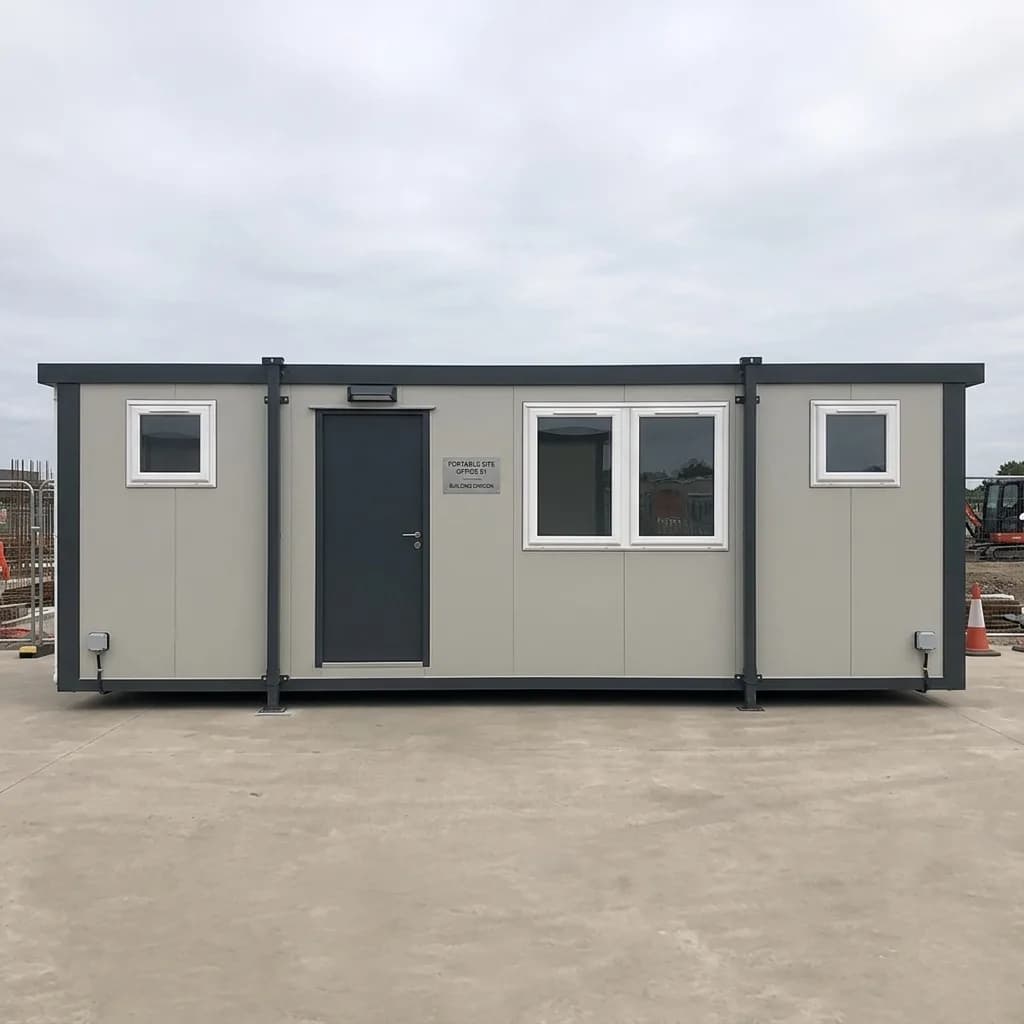

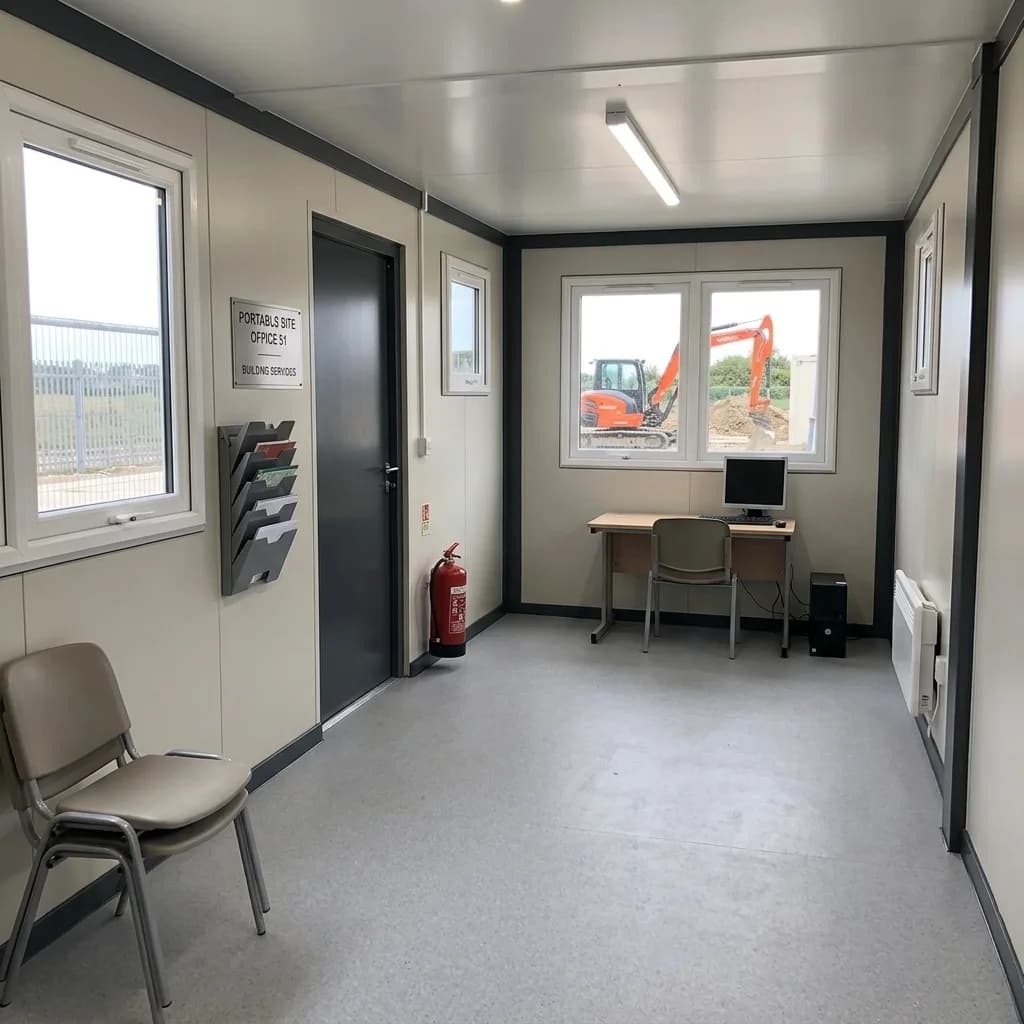

A ready-to-use 20 ft portable site office finished in grey two-tone cladding: insulated walls, three windows, a secure personnel door, LED lighting and a furnished interior with desk, seating and document storage. Delivered and placed on adjustable steel legs — ideal as a first site office or project engineer's cabin. Layout, electricals and finish are customisable.
Applications
- Site office
- Project engineer's cabin
- Contractor office
- Documentation room
Standard inclusions
- 1 personnel door
- 3 sliding windows
- LED panel lighting
- AC / wall-heater point
- Power points
- Document rack
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Bottom frame
- Heavy-duty MS rectangular / structural section as approved
- Main frame
- Welded MS framework
- Surface protection
- Anti-corrosion primer and approved exterior coating
- Lifting arrangement
- Suitable lifting hooks / points
Flooring
- Support
- Structural floor support
- Base board
- Cement-fibre board or approved equivalent
- Finish
- Commercial vinyl flooring or selected finish (anti-skid optional)
Walls
- Wall system
- Insulated wall system (PUF / EPS / rockwool as approved)
- Finish
- Interior and exterior finish selected by customer; joints sealed
Roof
- Roof system
- Insulated roof with waterproof joint treatment and drainage
- Ceiling
- Optional false ceiling
Door
- Door
- MS / flush / aluminium door with locking hardware and handle
Windows
- Windows
- Aluminium / UPVC sliding windows with safety grill and locking
- Mesh
- Optional mosquito mesh
Electrical
- Wiring
- FRLS copper wiring or approved equivalent
- Distribution
- MCB distribution board with earthing point
- Fittings
- LED lights, cabin fans, plug points, AC provision, exterior bulkhead light
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Standard external size: 20 × 8 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.
Request a custom sizeDelivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
Reviews
No reviews yet. Be the first to review this product.
Write a review
Reviews are moderated and published after approval. Please share genuine feedback only.
You may also like
Related products
Portable Site Offices

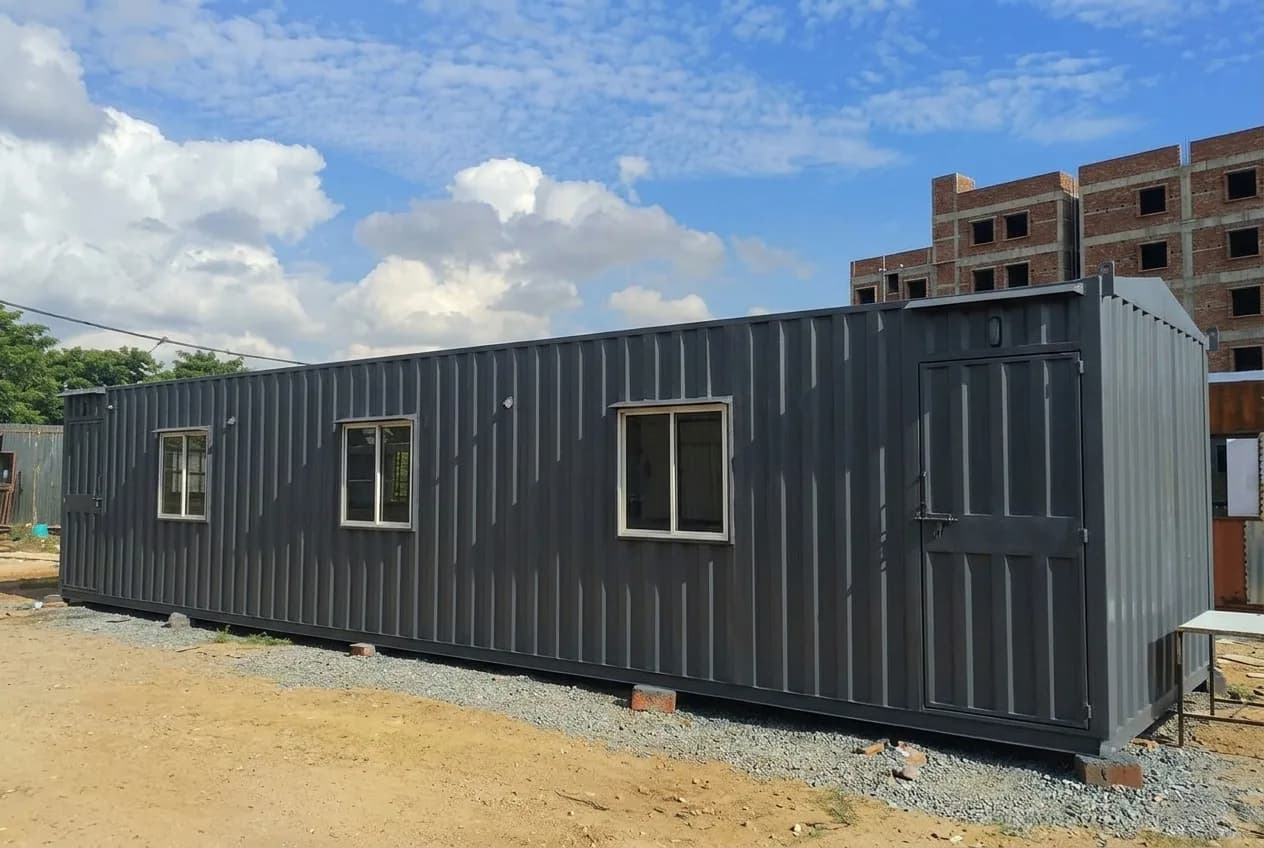

40 × 10 ft Portable Site Office
