20 ft PUF Panel Cabin
Insulated PUF sandwich-panel cabin — multi-compartment office, welfare and storage unit.
₹3,12,700 Total including 18% GST
- Base price (excl. GST)
- ₹2,65,000
- GST @ 18%
- ₹47,700
- Total incl. GST
- ₹3,12,700
- Size
- 20 × 8 × 8.5 ft
- Availability
- Made to order
- Lead time
- Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Buy Now takes you to secure online payment with this quantity. Add to Cart keeps this cabin in your cart.
Online payment covers the product price, GST and a delivery charge confirmed from your delivery address at checkout. Unloading, installation and site charges are optional and quoted separately.
Secure payments powered by Razorpay
Safe & Secure Payments
Available payment methods are shown securely by Razorpay at checkout and may depend on the order value.
Payment details are entered only in Razorpay’s own secure payment window. This website never sees or stores them.
Overview

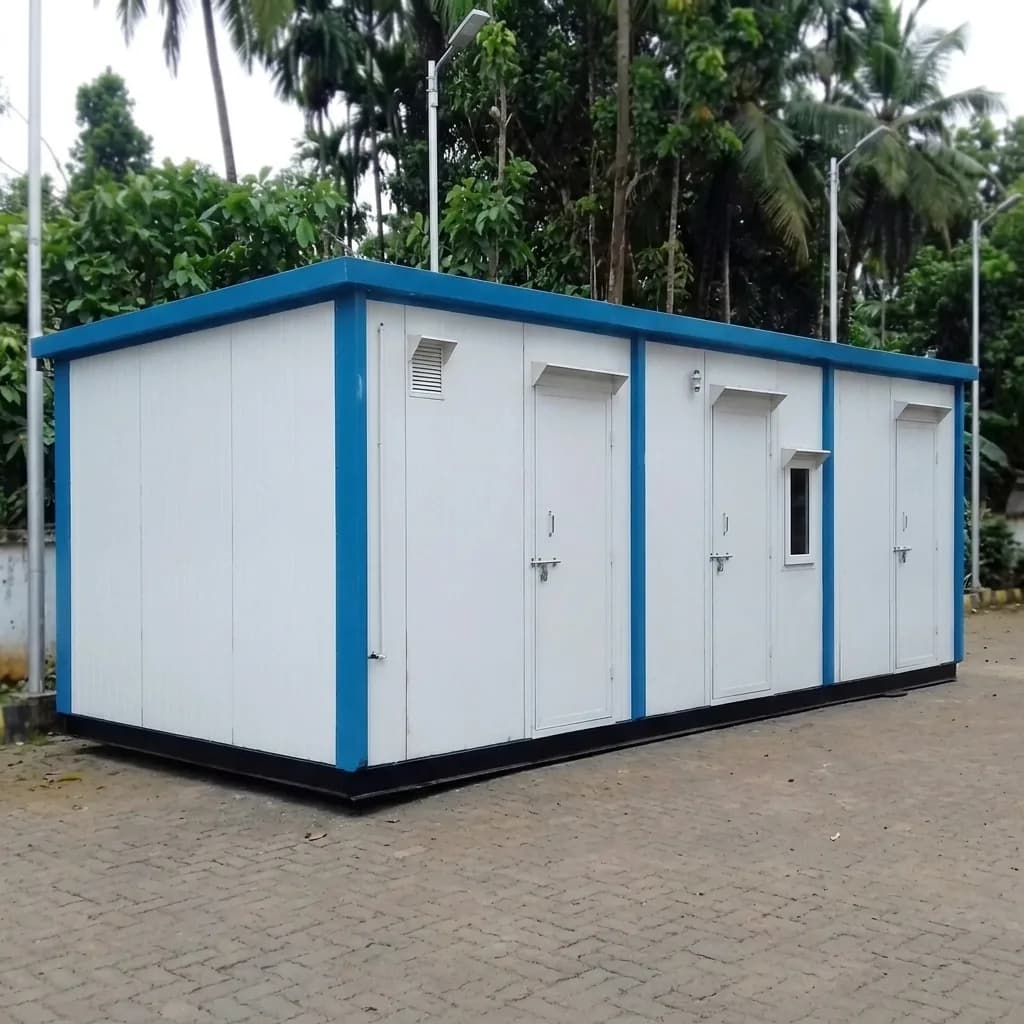

A 20 ft PUF panel cabin built from insulated polyurethane-foam (PUF) sandwich panels for a cooler, quieter interior. This multi-compartment unit combines an office bay, a welfare area with washbasin and water heater, and lockable storage — finished in blue-and-white PPGI cladding with anti-skid vinyl flooring, LED panel lighting and ventilation. Compartments, doors and finish are customisable.
Applications
- Site office & welfare unit
- Labour welfare cabin
- Multi-room site cabin
- Storage & changing room
Standard specification included in this price

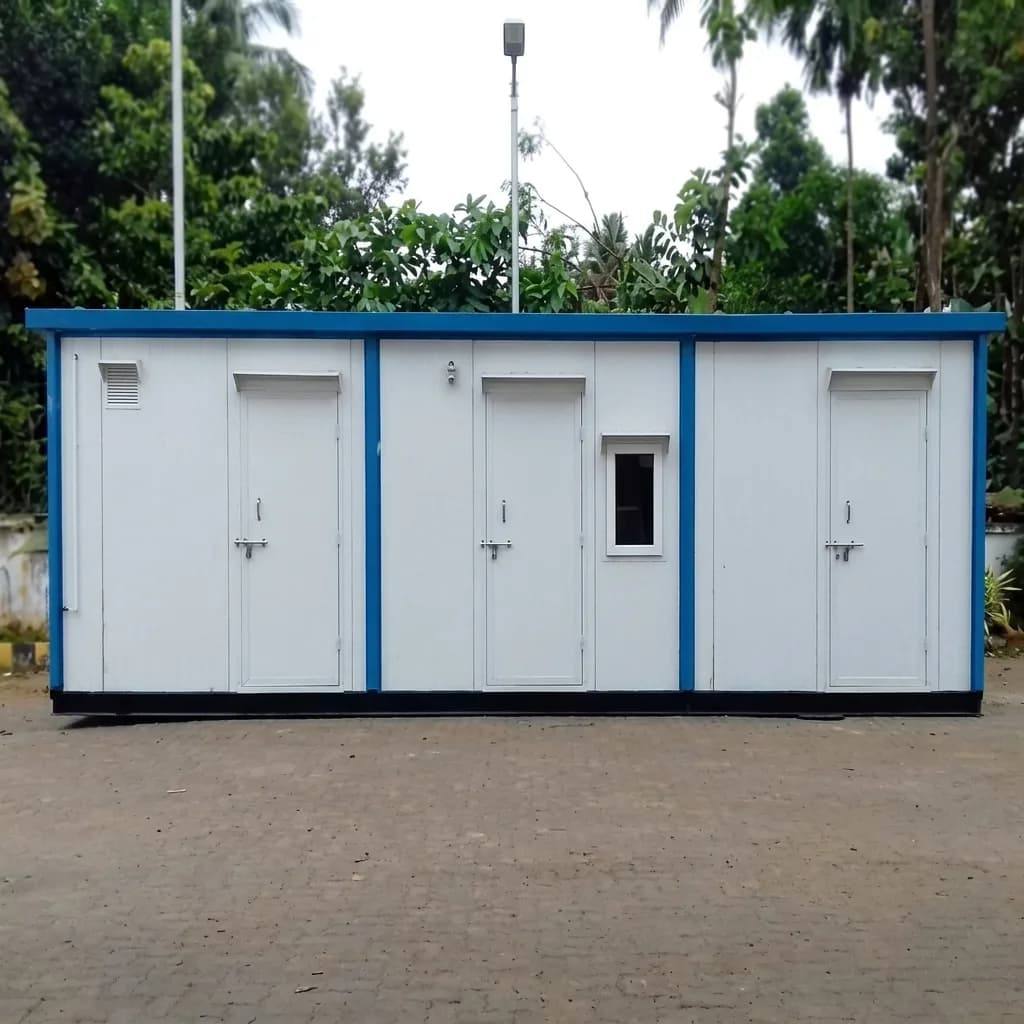

- 3 personnel doors

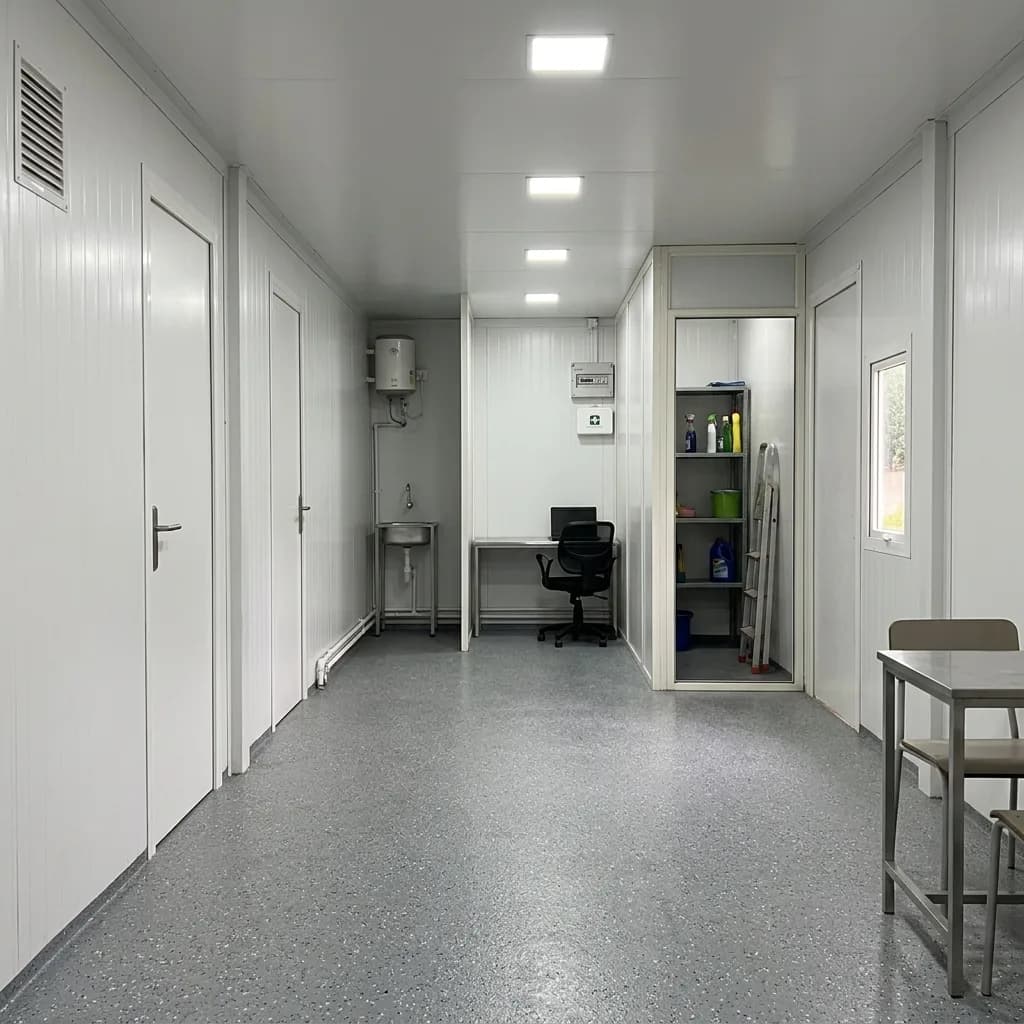

- Washbasin & water heater
- Storage shelving
- LED panel lighting

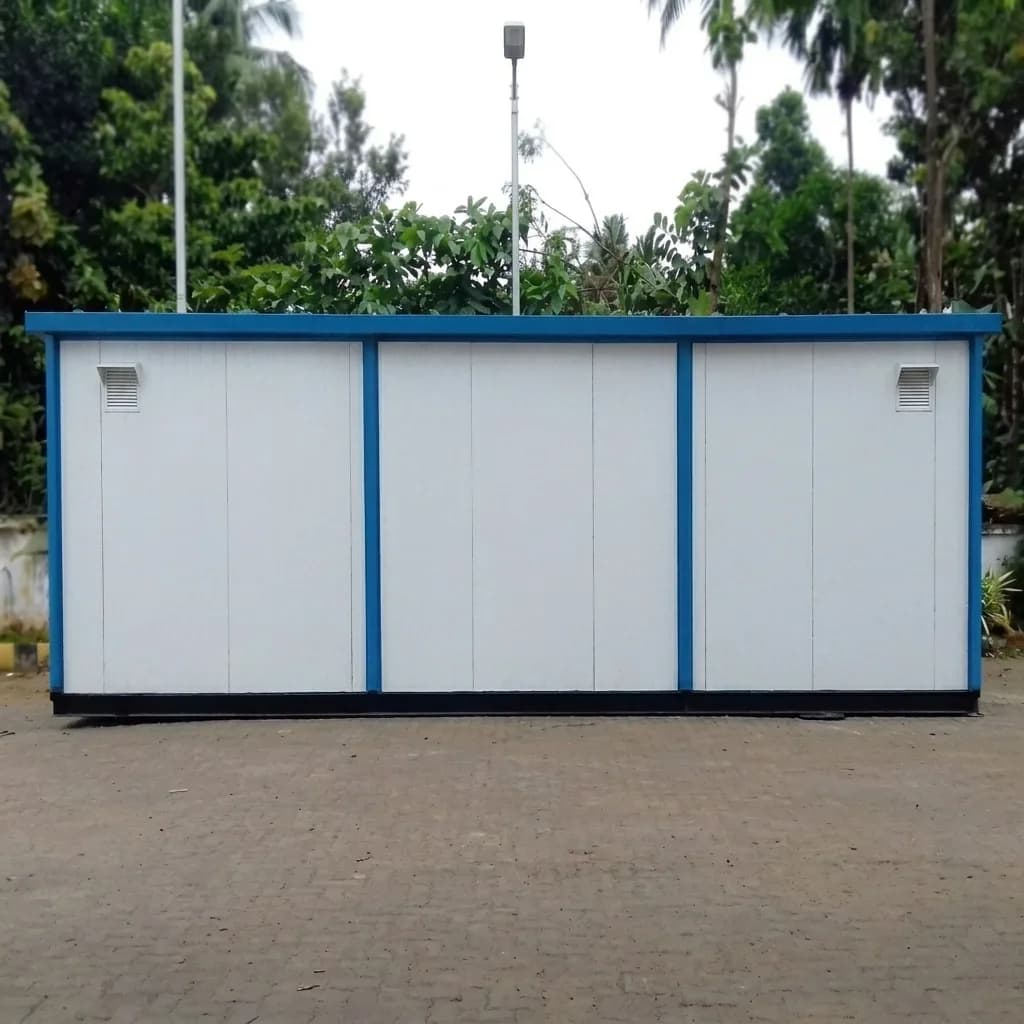

- Louvre ventilation
- Anti-skid vinyl flooring
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Panel system

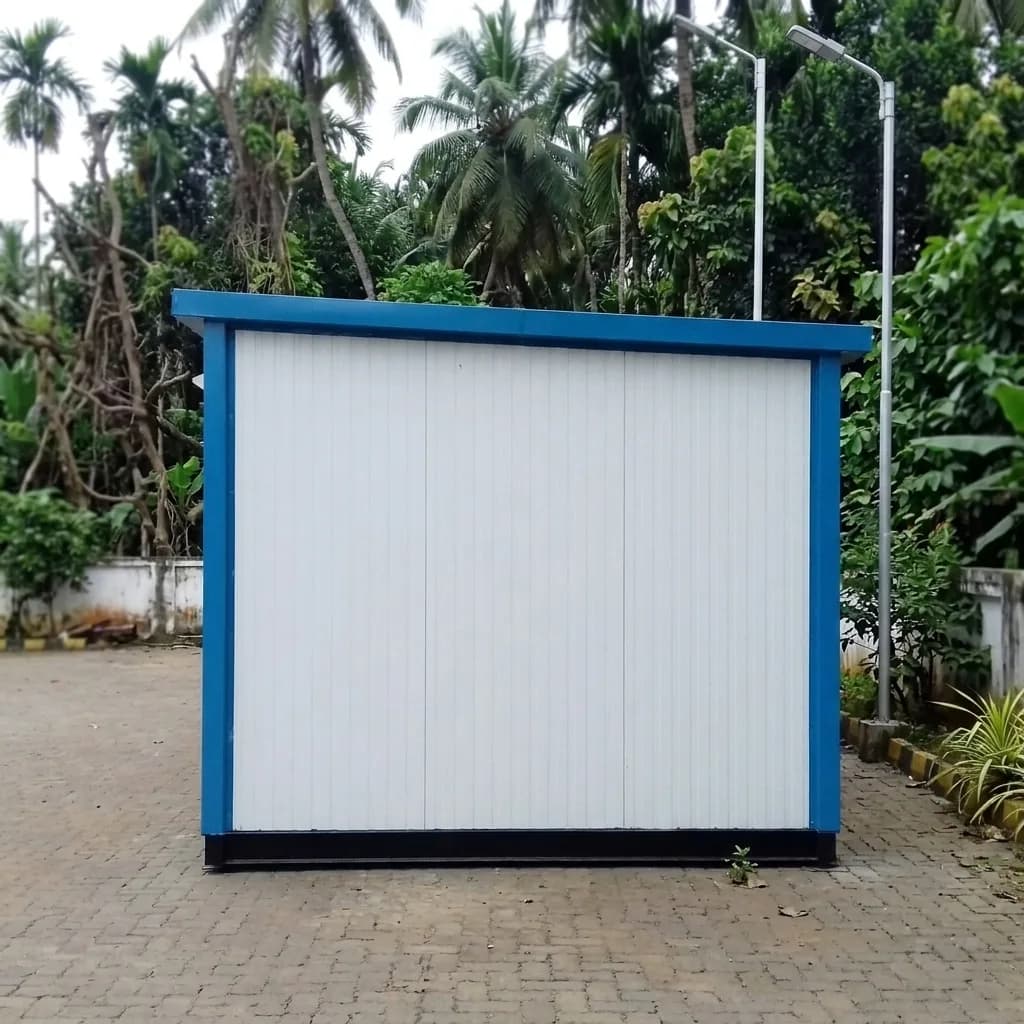

- 50 mm PUF (polyurethane foam) sandwich panels with PPGI facings, both sides
- Bottom frame
- Heavy-duty MS rectangular / structural section as approved
- Main frame
- Welded MS framework
- Surface protection
- Anti-corrosion primer and approved exterior coating
- Lifting arrangement
- Suitable lifting hooks / points
Flooring
- Support
- Structural floor support
- Base board
- Cement-fibre board or approved equivalent
- Finish
- Commercial vinyl flooring or selected finish (anti-skid optional)
Walls
- Wall system
- Insulated wall system (PUF / EPS / rockwool as approved)
- Finish
- Interior and exterior finish selected by customer; joints sealed
Roof
- Roof system
- Insulated roof with waterproof joint treatment and drainage
- Ceiling
- Optional false ceiling
Door
- Door
- MS / flush / aluminium door with locking hardware and handle
Windows
- Windows
- Aluminium / UPVC sliding windows with safety grill and locking
- Mesh
- Optional mosquito mesh
Electrical
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Distribution
- MCB distribution board with earthing point
- Fittings
- LED lights, cabin fans, plug points, AC provision, exterior bulkhead light
Available sizes
Standard external size: 20 × 8 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.
Delivery, warranty & drawings
Manufacturing
Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
Delivery
Delivery is charged at checkout from our approved schedule, and every figure includes GST: ₹1,000 to PIN codes local to our yard, ₹18,000 elsewhere in Karnataka and Tamil Nadu, ₹28,000 to Andhra Pradesh, Telangana, Kerala and Puducherry, ₹45,000 elsewhere in India that we serve. Unloading at your site, positioning and on-site installation are not included in the delivery charge. They are available as an optional service at ₹15,000 including GST, which you can add at checkout to pay for with your order or have arranged separately with our team afterwards, and which is never added unless you choose it.
Warranty
Warranty as per the approved quotation.
No floor plan is on file for this model. Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
