Double-Storey Container Showroom

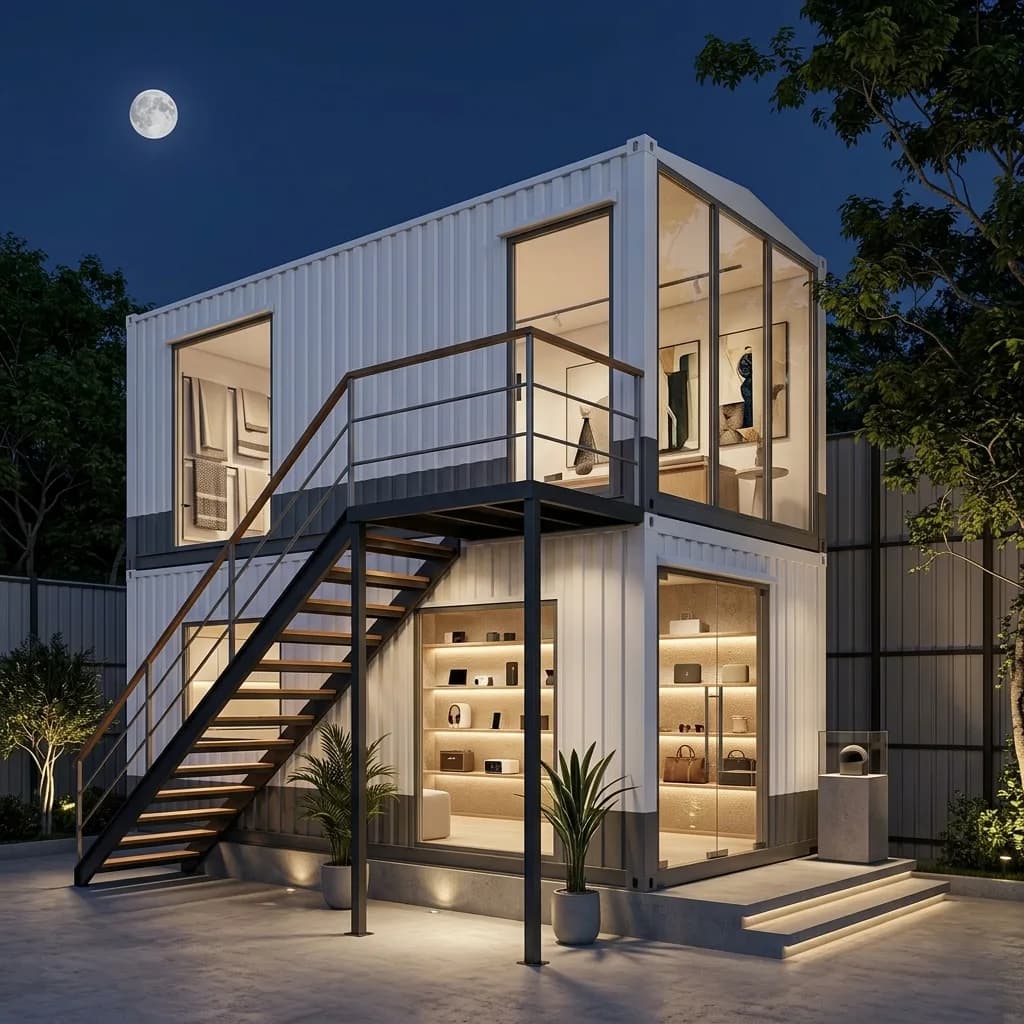

Double-storey (G+1) container showroom — glass display fronts and lit shelving across two floors, delivered turnkey.
₹15,93,000 grand total
incl. GST
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

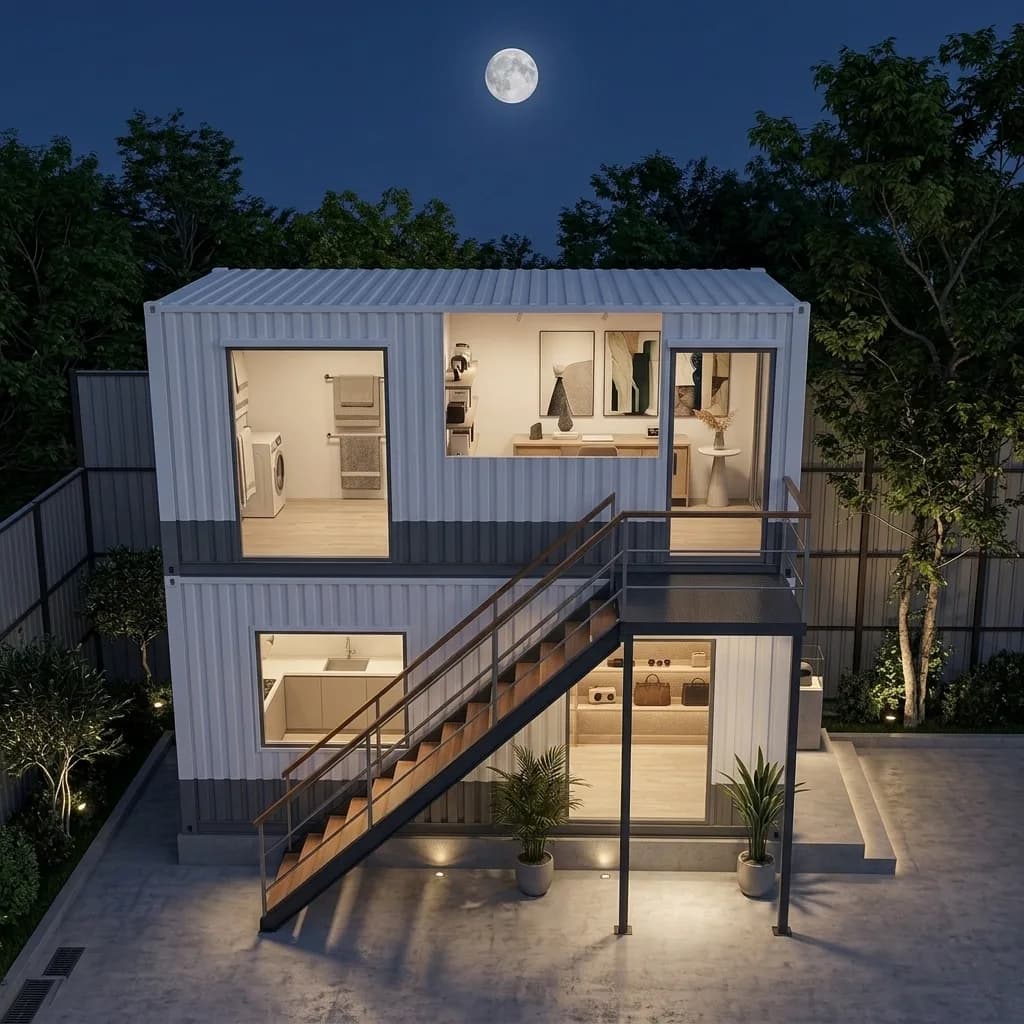

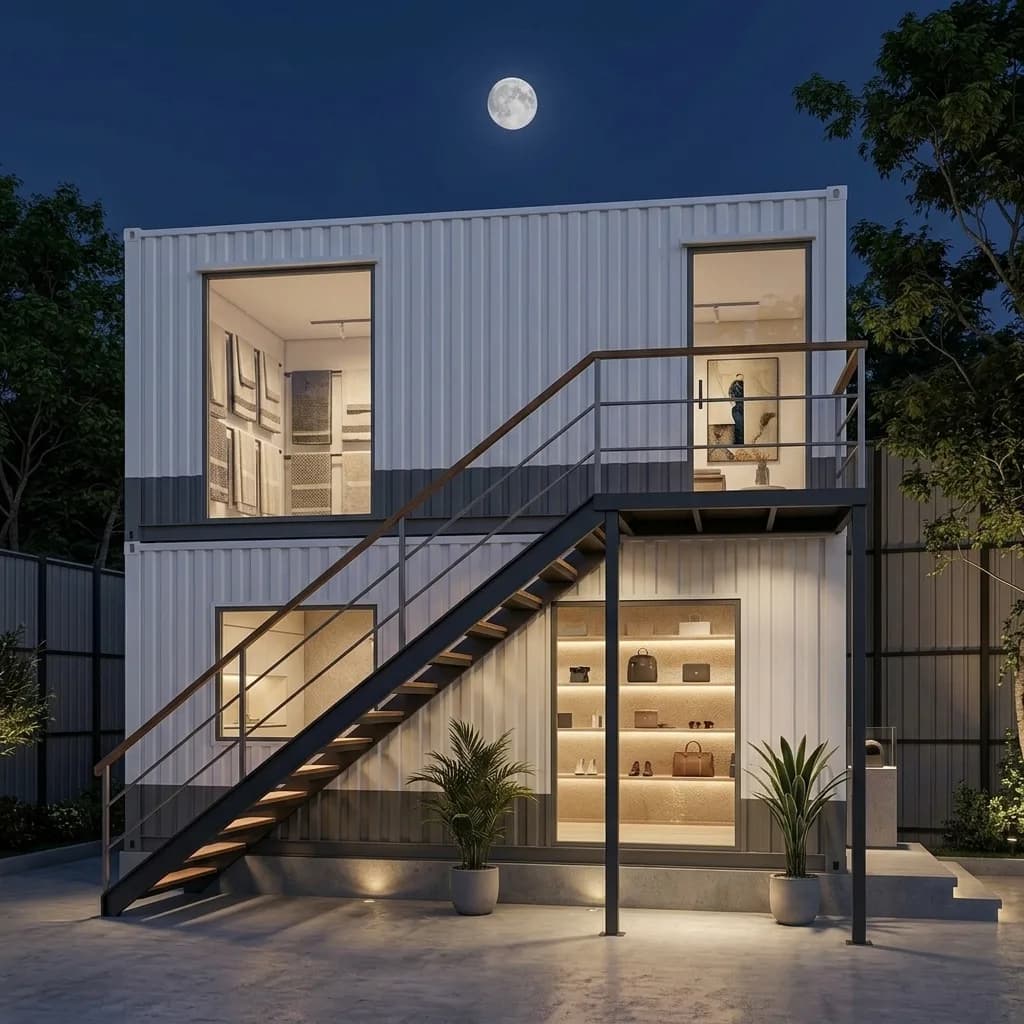

A premium double-storey (G+1) container showroom: full-height glass display fronts, backlit glass shelving and track lighting across two floors, connected by an external steel staircase to an upper display gallery. Finished in clean white cladding with a warm timber-look interior floor — a turnkey retail showroom that arrives ready to merchandise. Fixtures, glazing and branding are configured to your products; the display goods shown in the images are illustrative.
Applications
- Retail showroom / boutique
- Double-storey display gallery
- Brand experience store
- Premium product showroom
Standard inclusions
- Full-height glass display fronts

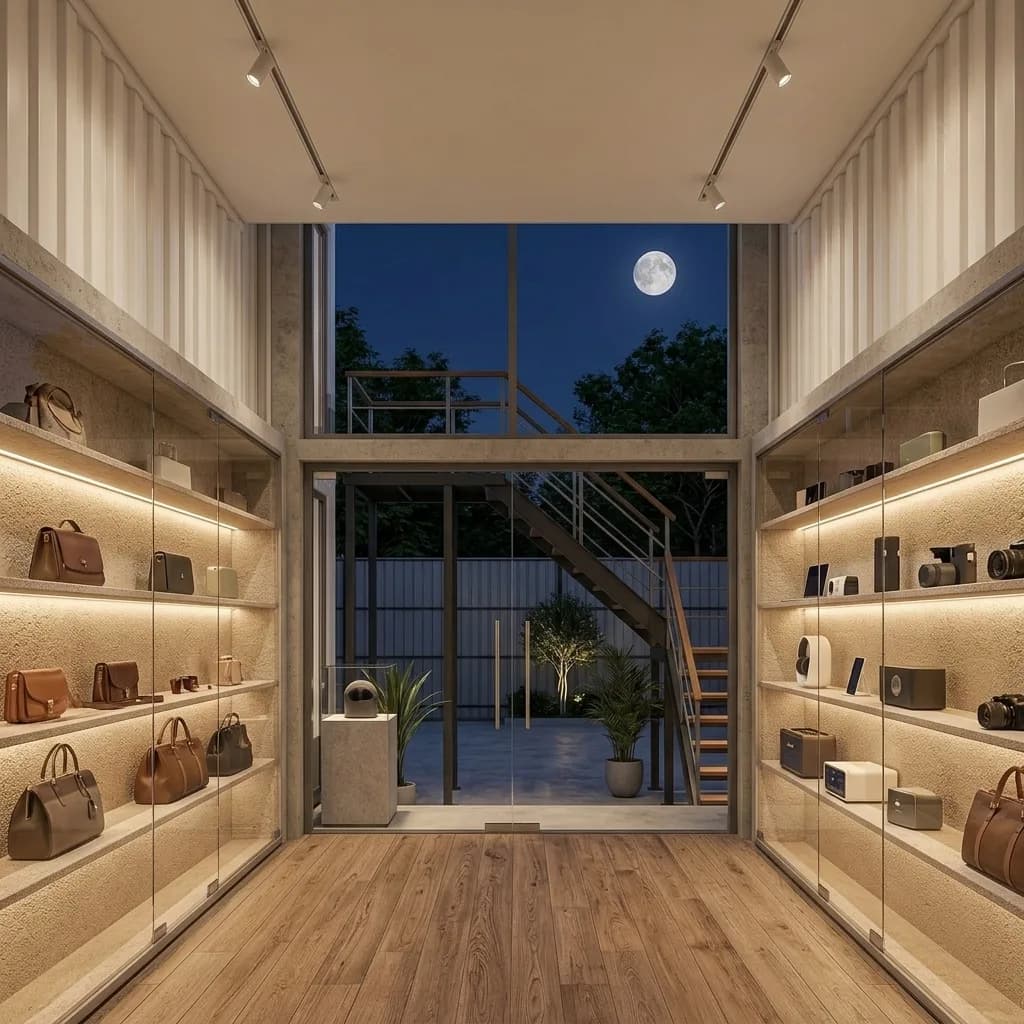

- Backlit glass display shelving
- Track / accent lighting
- External steel staircase

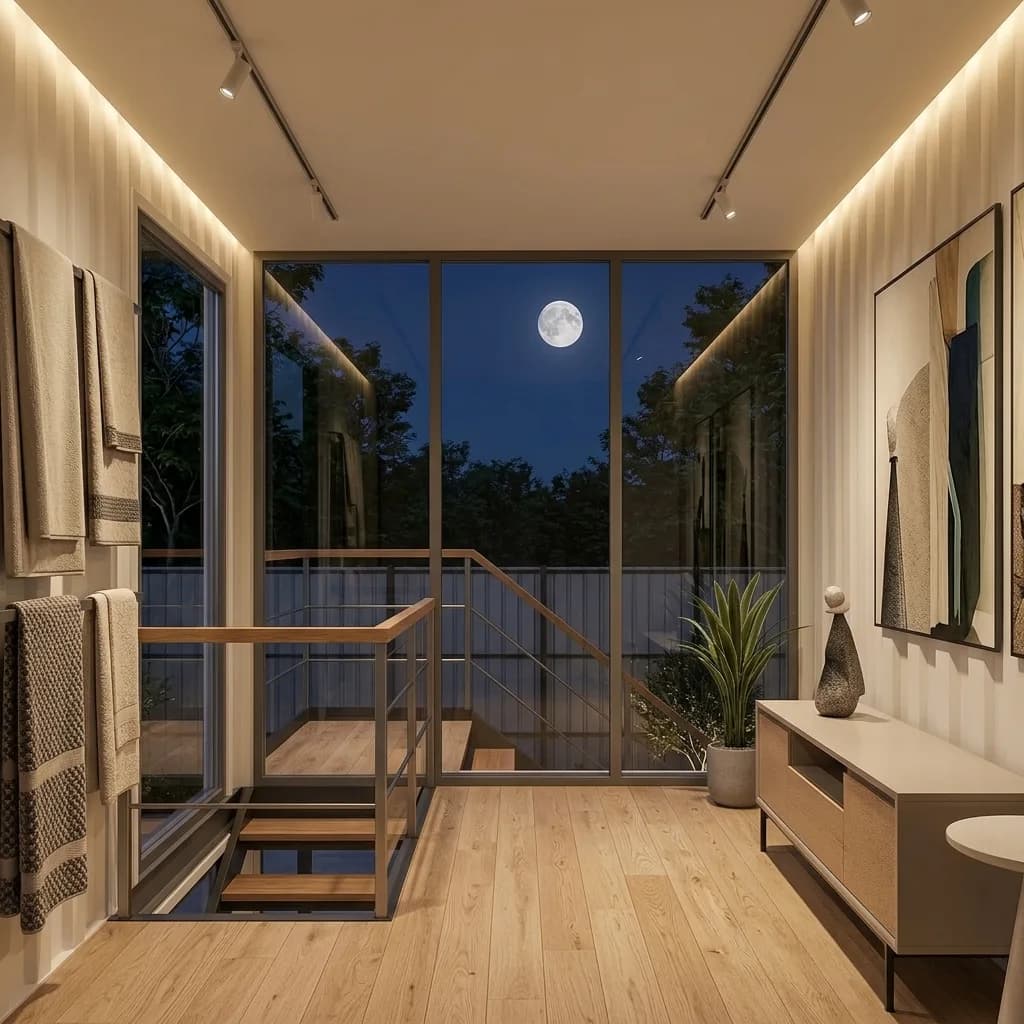

- Upper display gallery
- Timber-look flooring
- White cladding (customisable)
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Configuration
- G+1 (ground + first floor) double-storey; external steel staircase and upper display gallery
- Bottom frame
- Heavy-duty MS rectangular / structural section as approved
- Main frame
- Welded MS framework
- Surface protection
- Anti-corrosion primer and approved exterior coating
- Lifting arrangement
- Suitable lifting hooks / points
Flooring
- Support
- Structural floor support
- Base board
- Cement-fibre board or approved equivalent
- Finish
- Commercial vinyl flooring or selected finish (anti-skid optional)
Walls
- Wall system
- Insulated wall system (PUF / EPS / rockwool as approved)
- Finish
- Interior and exterior finish selected by customer; joints sealed
Roof
- Roof system
- Insulated roof with waterproof joint treatment and drainage
- Ceiling
- Optional false ceiling
Door
- Door
- MS / flush / aluminium door with locking hardware and handle
Windows
- Windows
- Aluminium / UPVC sliding windows with safety grill and locking
- Mesh
- Optional mosquito mesh
Electrical
- Wiring
- FRLS copper wiring or approved equivalent
- Distribution
- MCB distribution board with earthing point
- Fittings
- LED lights, cabin fans, plug points, AC provision, exterior bulkhead light
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Custom sizes are built to order — share your requirement for an exact layout.
- G+1 double-storey· external staircase; footprint built to layout
Delivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
