Solar Portable Security Cabin

Compact solar-ready portable security cabin — a self-contained guard booth with inverter/battery backup, AC and a wide observation window; rooftop solar and CCTV are optional add-ons.

₹1,71,100 Total including 18% GST

Availability: Made to order
Lead time: Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)
Warranty: 5-year structural, subject to customer maintenance against rust and paint deterioration · 1-year on supplied electrical and hardware items

Online payment is not available for this cabin, so Buy Now opens checkout with this quantity to request a quotation; no payment is taken online. Add to Cart keeps this cabin in your cart, and a cart line does not reserve stock.

Overview

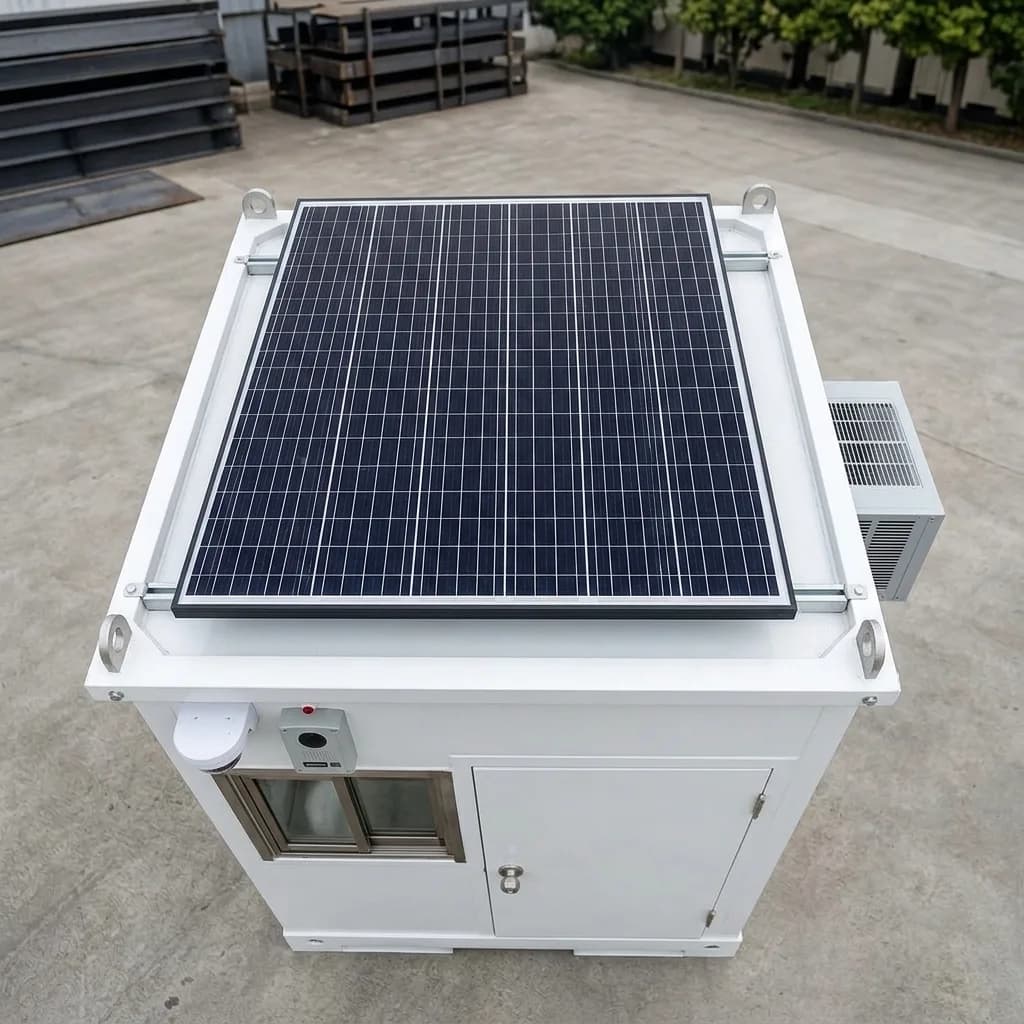

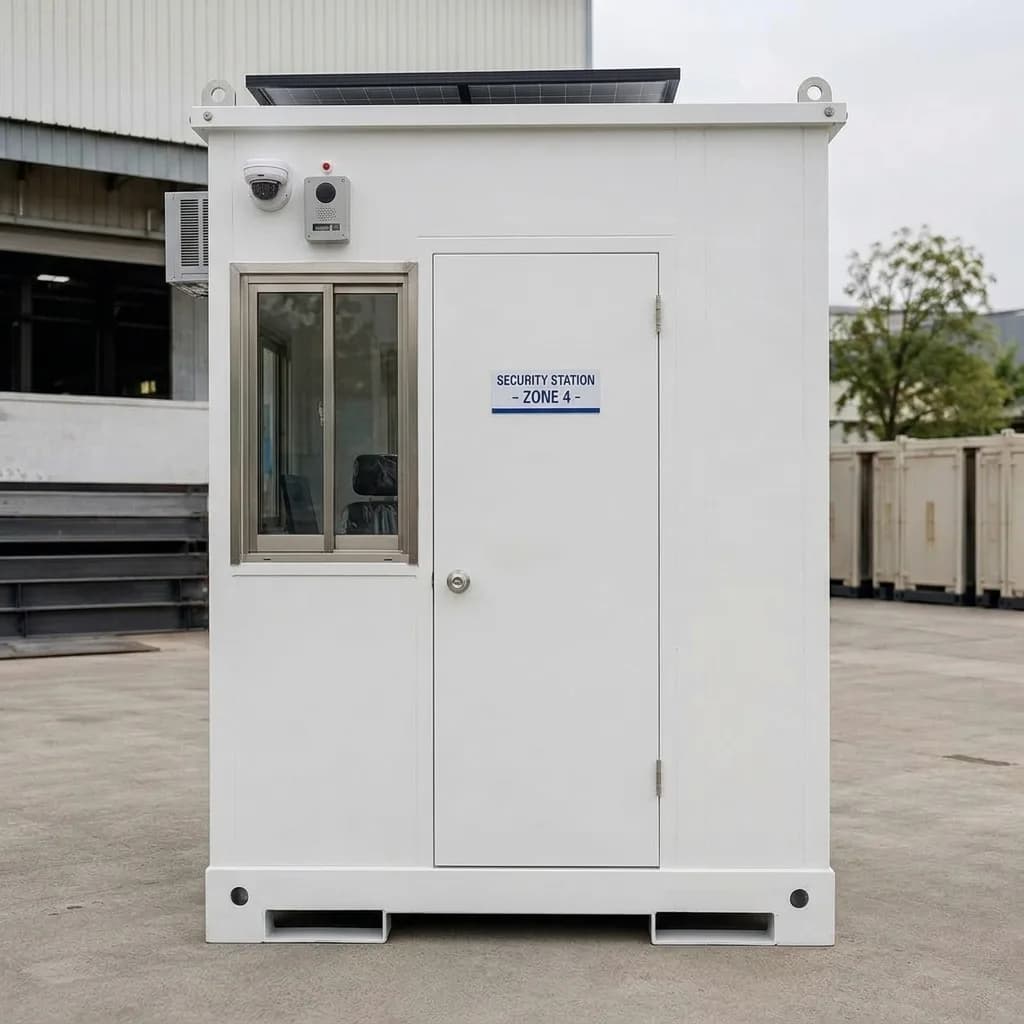

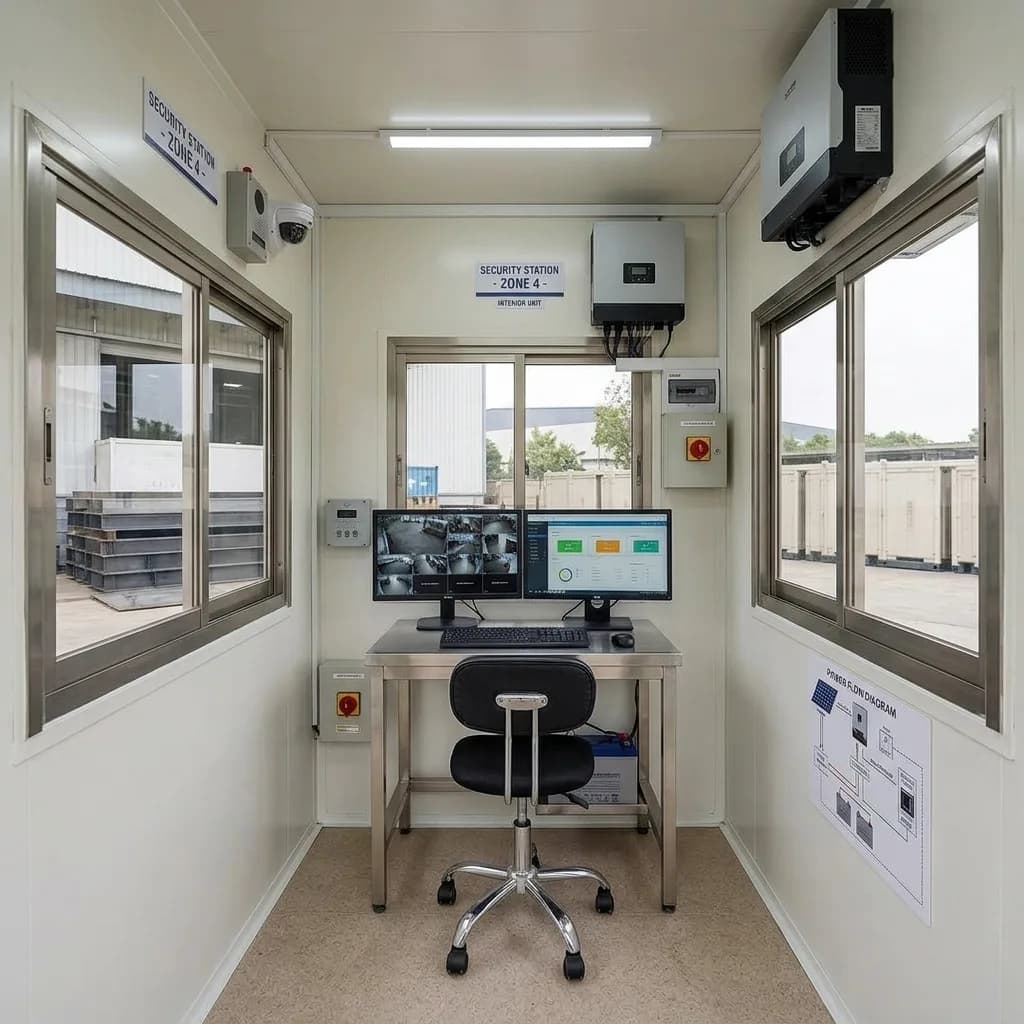

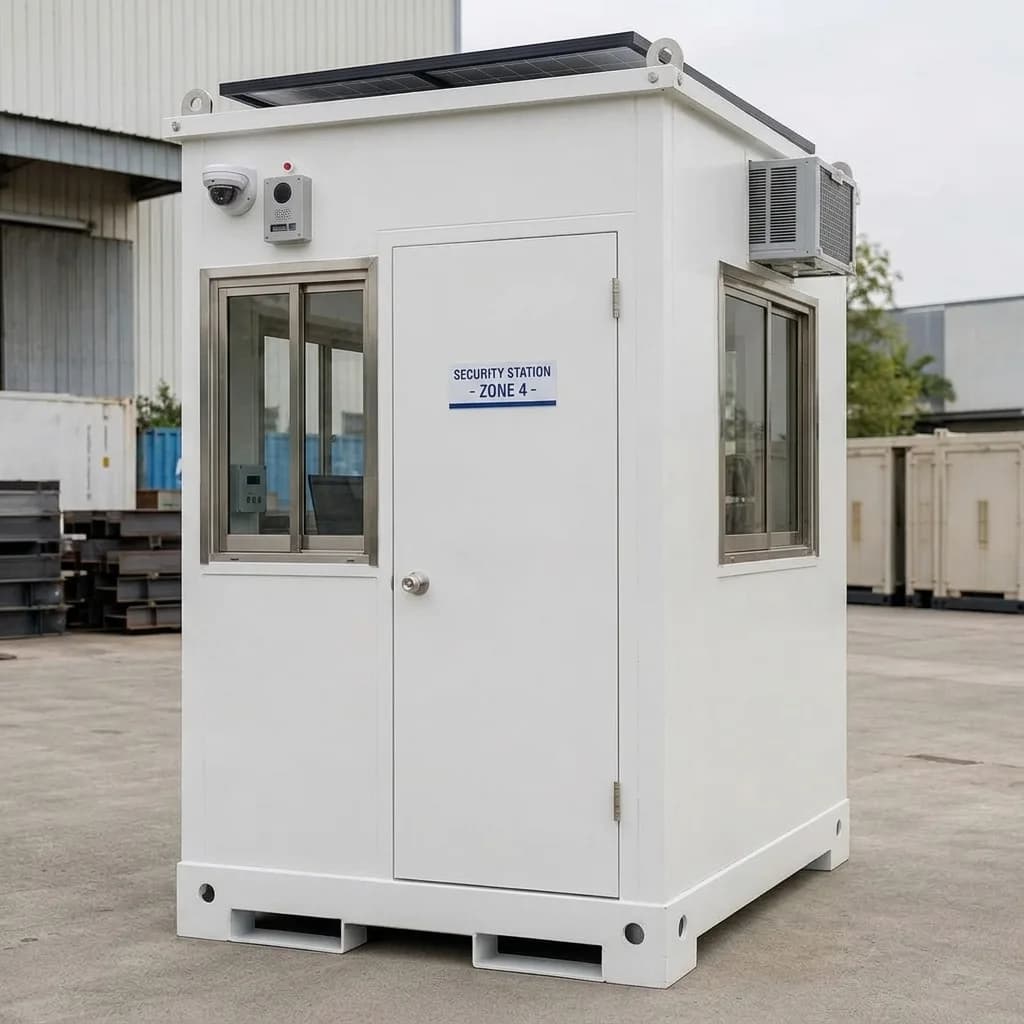

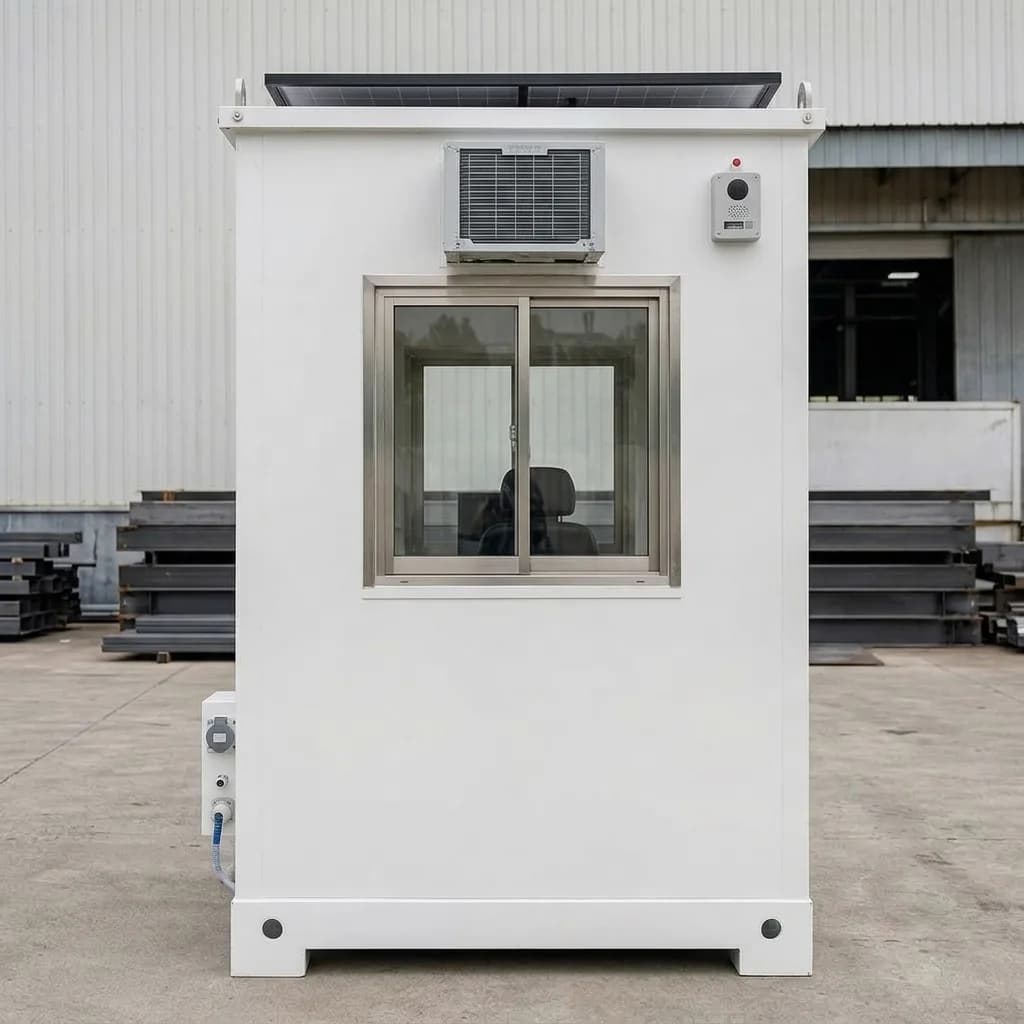

A compact single-occupant portable security cabin (guard booth) finished in white steel, built for gate posts, sites and campuses. It comes with an interior inverter and battery bank for backup power, a wall-mounted air-conditioner, a wide sliding safety-glass observation window, a lockable personnel door and a fitted interior desk, and it is solar-ready — the rooftop solar panel seen in the photos is an optional add-on. The CCTV dome camera, video door intercom and monitoring setup shown are optional add-ons available at an additional cost; they are not included in the displayed price of ₹1,71,100. The signage shown (the 'Security Station – Zone 4' board and the wall diagram) is illustrative and customised per site; colours, size, glazing and the solar / CCTV package are configurable. Delivered ready to place on any firm, level surface across India. Please note: the solar panel is optional and available at an additional cost — it is not included in the displayed product price or its total including GST.

Applications

Gate / entry security post
Site or campus guard booth
Parking / toll cabin
Supervisor / watch cabin

Standard specification included in this price

Inverter + battery backup
Wall air-conditioner
Sliding safety-glass window
Lockable personnel door
Fitted interior desk
LED lighting

Specifications & materials

Final materials always match your approved quotation, drawing and purchase order.

Structure

Construction: Steel-framed insulated portable cabin (single-occupant guard booth) with a forklift-pocket base

Walls

Wall & roof: Insulated PUF / sandwich-panel walls and roof; white powder-coated finish (colours customisable)

Power

Backup: Interior inverter and battery bank for backup power; solar-ready for an optional rooftop panel

Solar panel (optional)

Cost: Optional and available at an additional cost. Not included in the displayed product price or grand total.

Climate

Cooling & light: Wall-mounted air-conditioner; LED interior lighting

Openings

Door & window: Lockable personnel door and a sliding safety-glass observation window

Interior

Console: Fitted work desk / console for a single operator

Security kit

Optional: Shown fitted with a CCTV dome camera, video door intercom and monitor (optional / customisable)

Electrical

Fittings: Concealed wiring, sockets, MCB and distribution board

Technical Material Specifications

Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.

Bottom Frame: 100 × 50 mm formed MS C-channel, 5 mm thick
Bottom Stiffeners: 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
Top Frame: Frame made from 50 × 50 mm square pipe, 2 mm thick
Top Stiffeners: 50 × 25 × 1.4 mm square pipe
Side Posts: 50 × 50 × 1.6 mm square pipe
Side-Wall Stiffeners: 50 × 25 × 1.4 mm square pipe
External Wall Panelling: Specially corrugated Corten steel sheet, 1.2 mm thick
Internal Wall Panelling: 7.3 mm pre-laminated MDF board
External Roof: 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
Bottom Flooring: 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
MS Door: 25 × 25 mm MS frame with 1.2 mm corrugated sheet
Insulation: Roof: 50 mm glass wool; Walls: 12 mm Armaflex
Wiring: Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
Electrical Fittings: 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
External Painting: Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
Lifting Hooks: Specially formed hooks for convenient lifting and shifting

Available sizes

Custom sizes are built to order — share your requirement for an exact layout.

Single-occupant guard booth· compact footprint; sizes built to requirement

Delivery, warranty & drawings

Manufacturing

Approximately 10–15 working days after shop-drawing approval and advance payment (subject to size and order)

Delivery

Delivery across Karnataka and India; transportation quoted separately.

Warranty

The cabin structure is covered by a 5-year structural warranty, subject to customer maintenance against rust and paint deterioration.

Electrical items and hardware items supplied with the cabin are covered by a 1-year warranty from the confirmed date of delivery.

Labour support: free for the first 2 years from delivery, chargeable for the following 3 years. This is labour support, not a product warranty.

No floor plan is on file for this model. Internal dimensions depend on the wall build-up and finish and are confirmed in the approved drawing.
