Portable Security Cabins
Solar Portable Security Cabin
- Gate / entry security post
- Site or campus guard booth
₹1,71,100 grand total
10 × 8 ft Security Cabin
Compact guard cabin for gates, sites and building entries.
From ₹85,000 per unit
Sample price — request a quote · excl. GST
- Size
- 10 × 8 × 8.5 ft
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

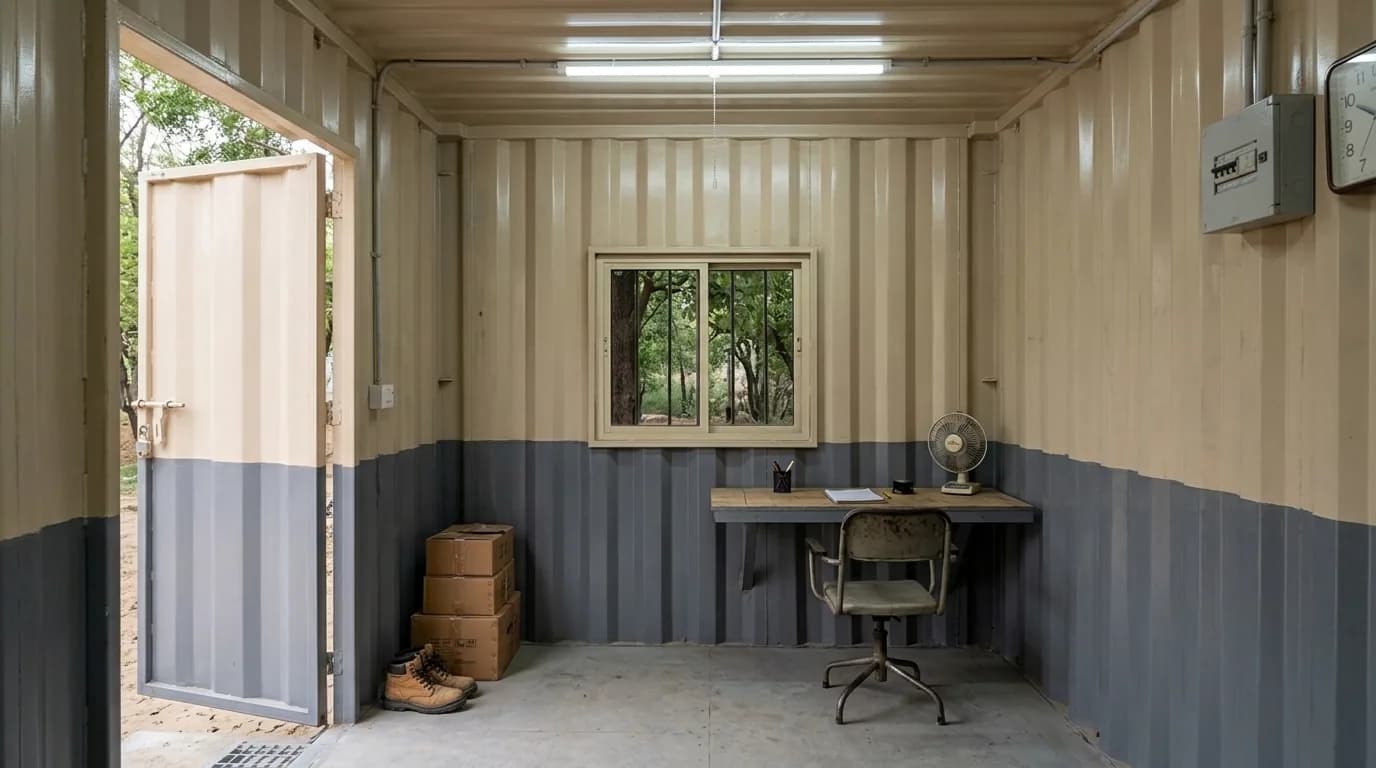

A compact, sturdy security cabin designed for guards and gate duty. Built on a welded MS frame with an insulated wall and roof system, it offers a comfortable enclosed workspace with a clear view of the entry. Sizes, fittings and finish are customisable.
Applications
- Gate security
- Site entry
- Parking booth
- Toll / checkpost
Standard inclusions
- 1 door
- 2 sliding windows with grill
- 1 LED light
- 1 fan point
- 2 plug points
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Main frame
- Welded MS framework with anti-corrosion primer
Walls
- Wall system
- Insulated PUF / EPS panel as approved
Roof

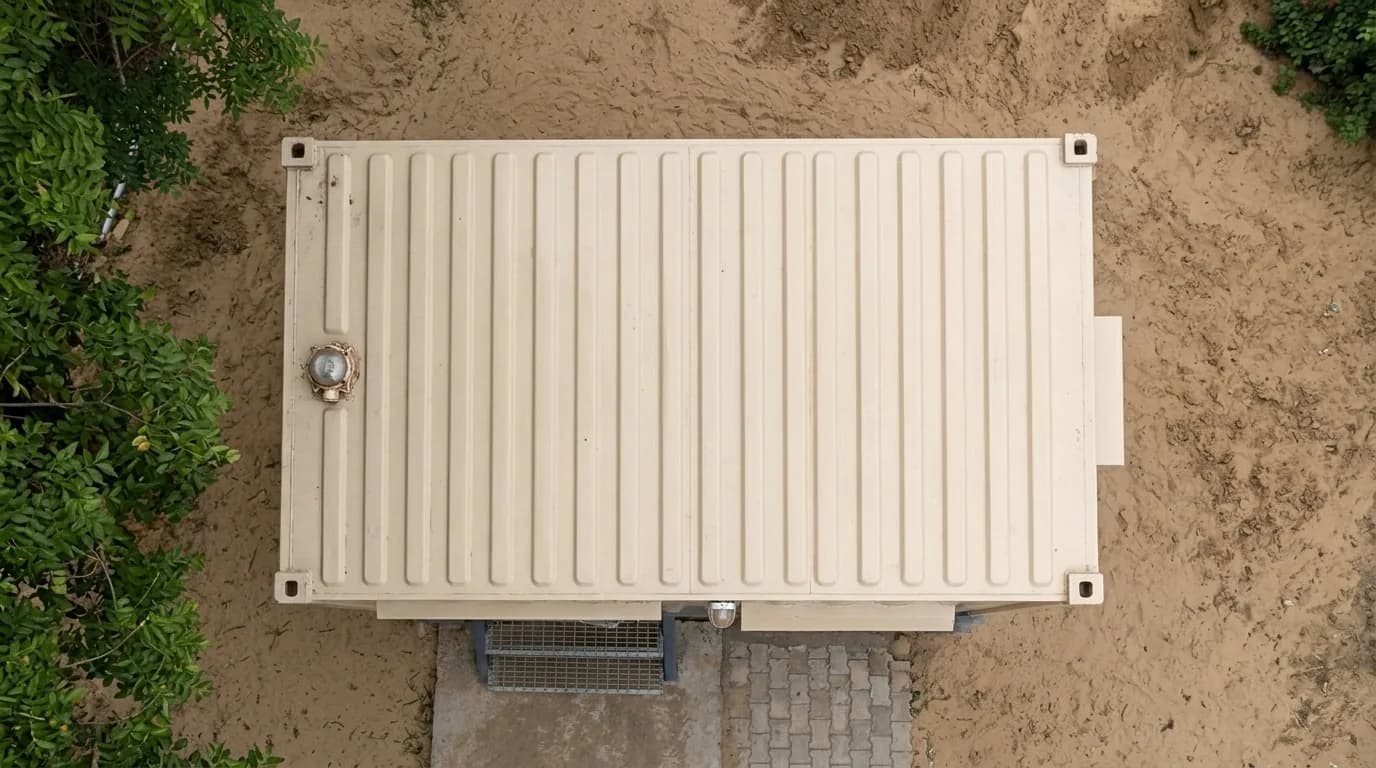

- Roof
- Insulated roof with waterproof treatment
Door
- Door
- MS / aluminium door with lock
Windows
- Windows
- Aluminium sliding windows with grill
Electrical
- Fittings
- LED light, fan point, plug points, MCB
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe

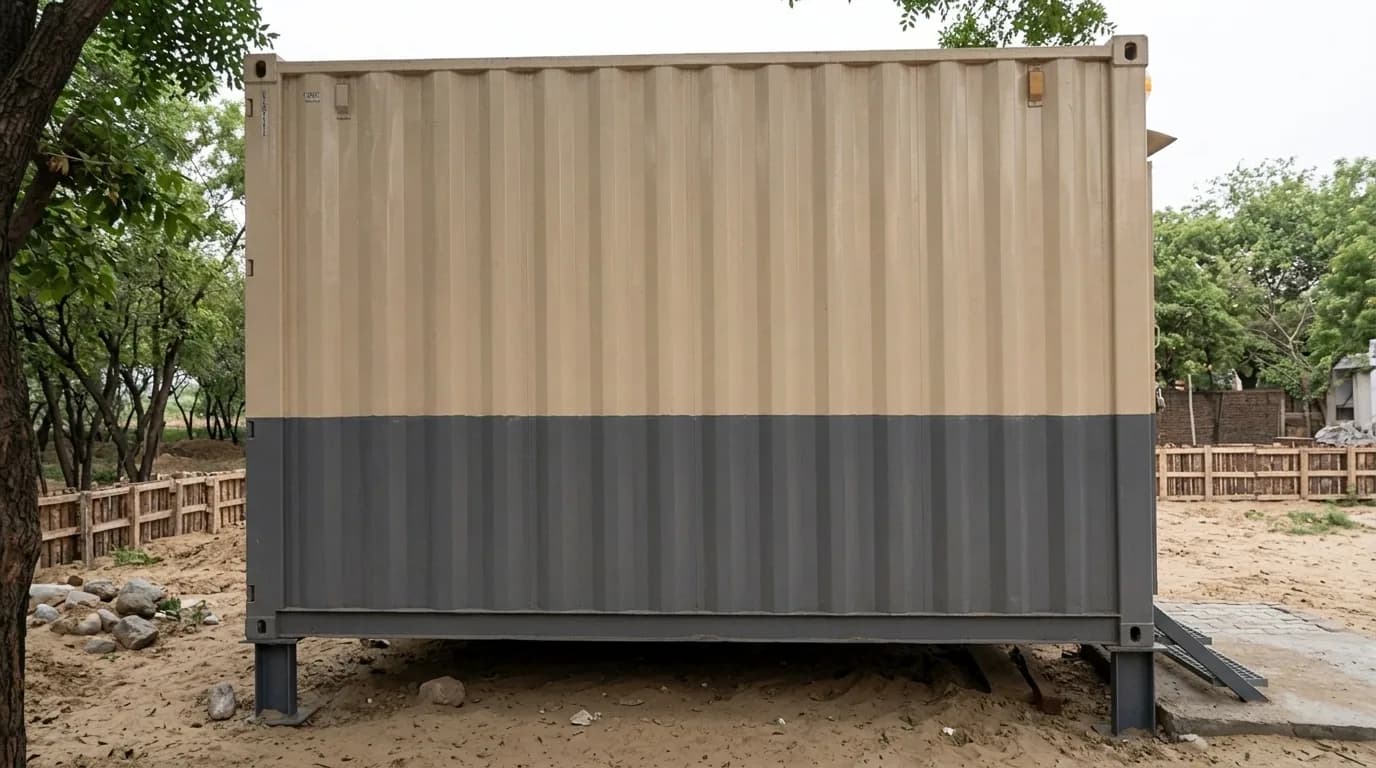

- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Standard external size: 10 × 8 × 8.5 ft. Custom sizes are built to order — share your requirement for an exact layout.
Request a custom sizeDelivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
