Portable Farmhouse with Rooftop Terrace
Portable farmhouse cabin with a covered verandah and a railed rooftop terrace — a ready-to-live weekend home.
₹5,60,500 grand total
incl. GST
- Availability
- Made to order
- Lead time
- Approximately 7–15 working days (subject to size and order)
- Warranty
- Warranty as per the approved quotation.
Overview

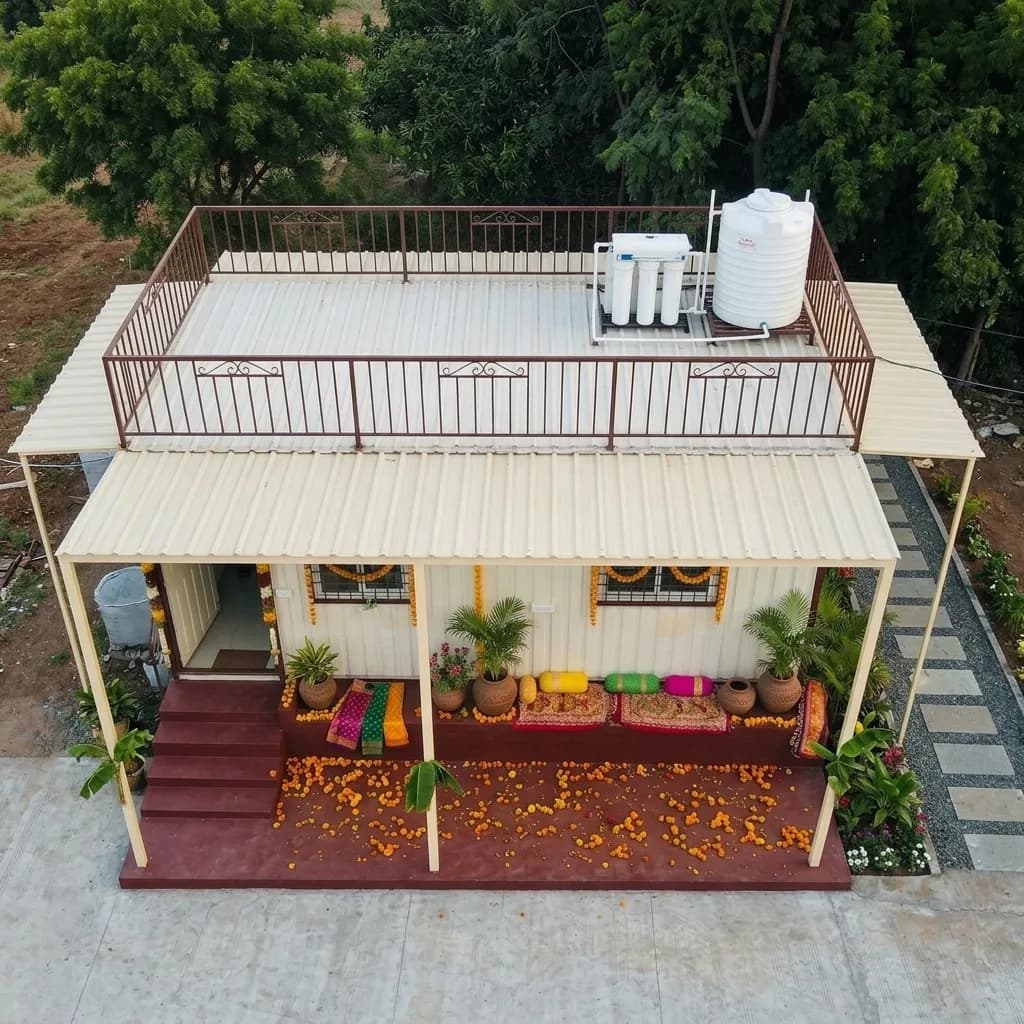

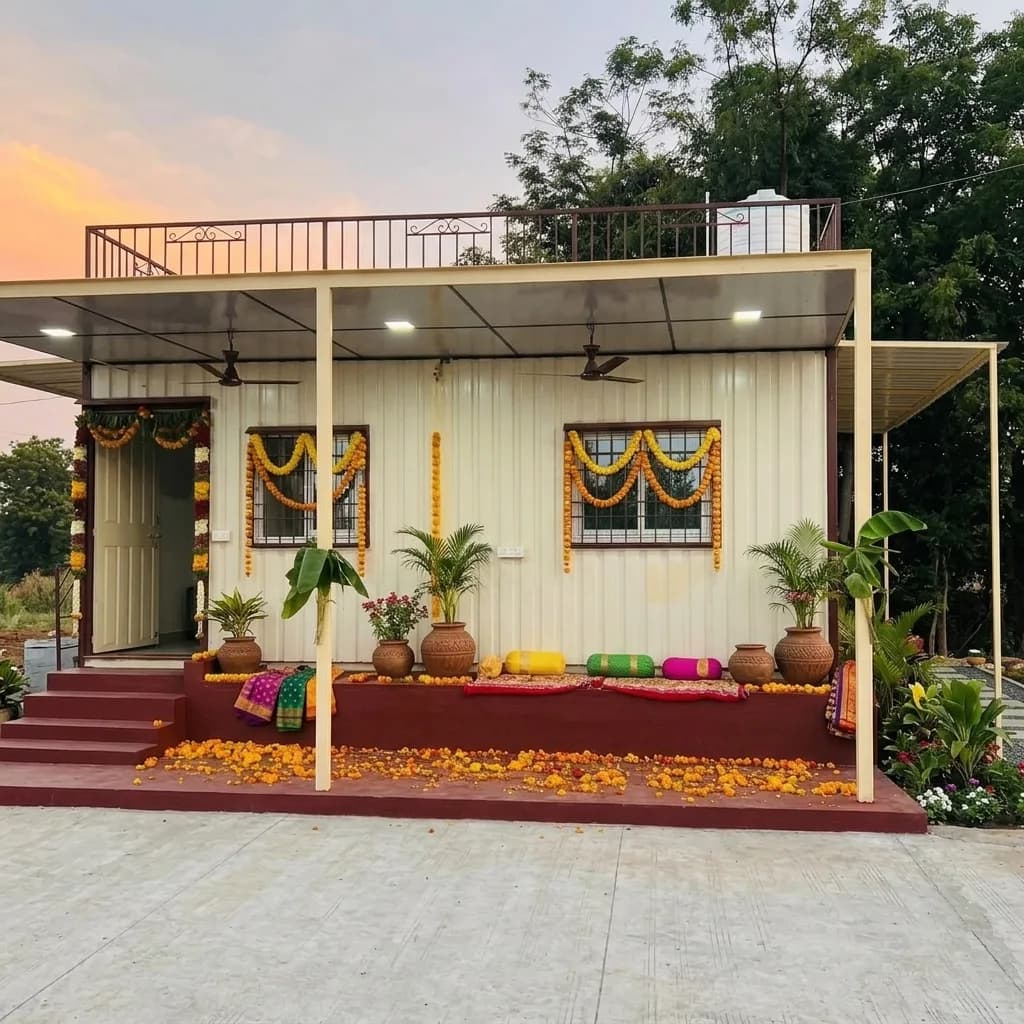

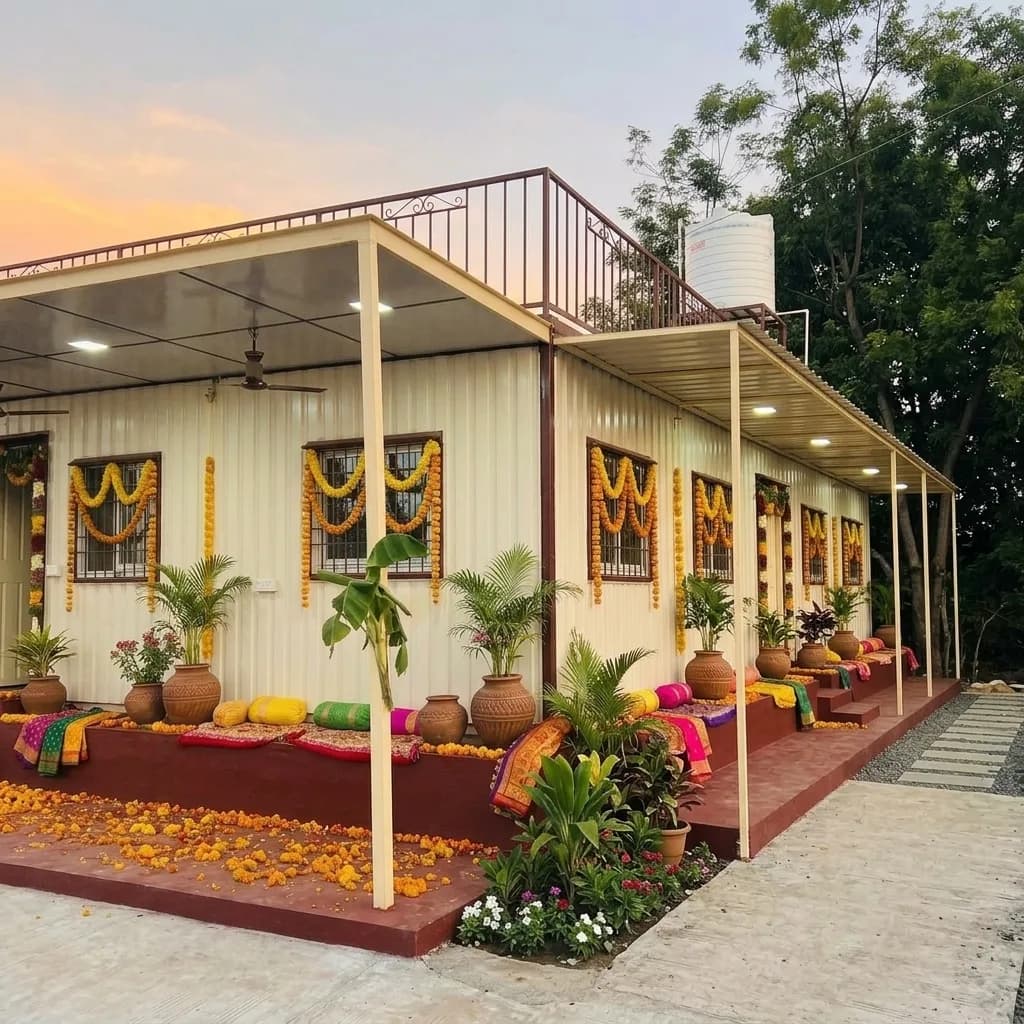

A single-storey portable farmhouse finished in cream steel cladding, with a covered front verandah, grilled sliding windows, a fitted kitchenette with a loft, and an external staircase to a railed rooftop terrace (with overhead water tank and RO provision). Delivered ready to live in and shown here dressed for a housewarming — layout, finishes and landscaping are customisable. Built for weekend homes, farm stays and second homes across India.
Applications
- Weekend / farm home
- Farm stay / homestay
- Second home
- Guest cottage
Standard inclusions
- Covered front verandah
- Railed rooftop terrace
- Grilled sliding windows
- Fitted kitchenette
- Loft / storage mezzanine
- LED lighting & fans
- Overhead water tank provision
Specifications & materials
Final materials always match your approved quotation, drawing and purchase order.
Structure
- Construction
- Steel-framed single-storey cabin with a railed rooftop terrace and external staircase
Walls
- Wall & roof
- Insulated PUF / Rockwool sandwich panels; weatherproof steel cladding
Verandah
- Verandah
- Covered front verandah with posts, ceiling fans and lighting
Interior
- Layout

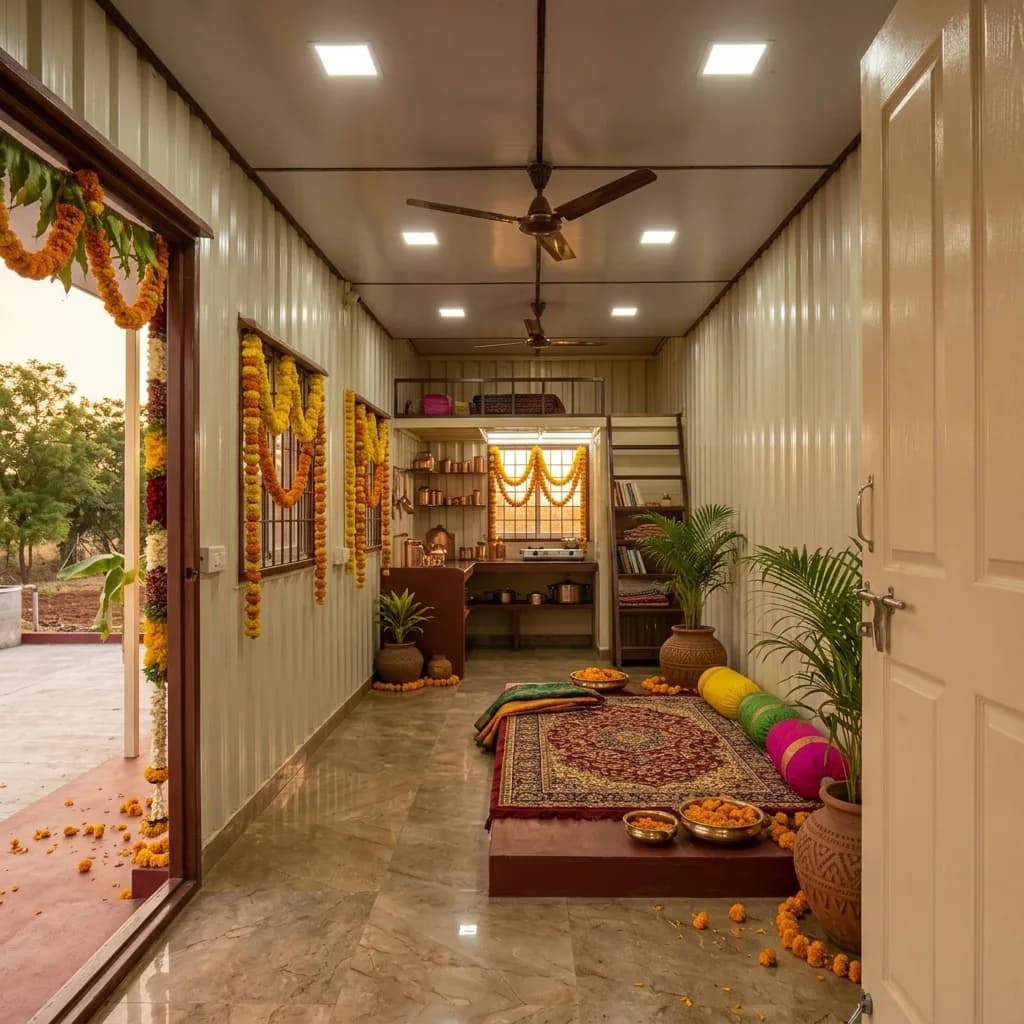

- Living space, fitted kitchenette and a loft / storage mezzanine
Flooring
- Floor
- Vitrified tile / vinyl over a structural floor deck
Openings
- Door & windows
- Personnel door and grilled sliding windows
Electrical
- Fittings
- Concealed wiring, LED lights, fans, sockets, MCB; overhead water tank & RO provision
Technical Material Specifications
Standard construction specification for this cabin range. Materials and specifications vary according to cabin type, size, approved design and customer requirements. Final construction details will be confirmed in the official quotation.
- Bottom Frame
- 100 × 50 mm formed MS C-channel, 5 mm thick
- Bottom Stiffeners
- 100 × 50 mm, 80 × 40 mm and 50 × 50 mm square pipes
- Top Frame
- Frame made from 50 × 50 mm square pipe, 2 mm thick
- Top Stiffeners
- 50 × 25 × 1.4 mm square pipe
- Side Posts
- 50 × 50 × 1.6 mm square pipe
- Side-Wall Stiffeners
- 50 × 25 × 1.4 mm square pipe
- External Wall Panelling
- Specially corrugated Corten steel sheet, 1.2 mm thick
- Internal Wall Panelling
- 7.3 mm pre-laminated MDF board
- External Roof
- 1.2 mm-thick MS steel sheet, properly sloped and made watertight to form the roof
- Bottom Flooring
- 18 mm cement-bonded fibre sheet, resistant to water, termites and dimensional changes, finished with LG-make vinyl carpet
- MS Door
- 25 × 25 mm MS frame with 1.2 mm corrugated sheet
- Insulation
- Roof: 50 mm glass wool; Walls: 12 mm Armaflex
- Wiring
- Concealed wiring using FR-grade insulated copper wire of ISI-approved Polycab or Finolex make
- Electrical Fittings
- 220–240 V AC, 50 Hz electrical fittings, including Wipro LED lights
- External Painting
- Phosphating treatment, one coat of primer and two coats of corrosion-resistant synthetic Nerolac paint
- Lifting Hooks
- Specially formed hooks for convenient lifting and shifting
Available sizes
Custom sizes are built to order — share your requirement for an exact layout.
- Single-storey + rooftop terrace· covered verandah; footprint built to layout
Delivery, warranty & drawings
Manufacturing
Approximately 7–15 working days (subject to size and order)
Delivery
Delivery across Karnataka and India; transportation quoted separately.
Warranty
Warranty as per the approved quotation.
